Lab Sheet 2#

This lab sheet contains the following lab activities:

Hardware & Software Required#

  • Intel DE10-Lite FPGA board (with a USB cable)
  • Computer with USB ports + Intel Quartus Prime Lite + VHDL Simulator

Lab 1: Combinational Logic Circuits Using Slide Switches and LEDs as I/O Devices#

Objective#

  • Understand how combinational logic circuits can be implemented using VHDL and tested on the Intel DE10-Lite FPGA board using an array of slide switches and LEDs.

Lab Procedure#

  1. Setting up a Quartus project:

    • Open the Intel Quartus Prime Lite software.
    • Create a new FPGA design project for the Intel DE10-Lite FPGA board, using VHDL as the design entry method.
    • Ensure that the correct FPGA device is selected during project setup.
    • Ensure the name of the top-level design entity is specified correctly in the project.
    • Use the provided FPGA pin assignments by importing the provided .tcl file.

  2. Analyzing VHDL code:

    • Analyze the provided VHDL-2008 code listings for Labs 1.1 to 1.3, which demonstrate how to model basic combinational logic circuits such as inverting I/Os, a priority encoder, and a decoder.
    • Compare the different implementations of the same design entity named top.

  3. Compiling and uploading the bitstream to the FPGA:

    • Try the given code, complete the compilation process, and upload the bitstream to the target FPGA.

  4. Testing the behavior using slide switches and LEDs:

    • Test the uploaded FPGA design by toggling the slide switches and observing the status of the LEDs on the FPGA board.
    • Describe the relationship between the positions of the slide switches and the status of the LEDs.

Lab 1.1: Inverting I/O Buffers#

The following is the VHDL code listing for the top-level design entity (named top).

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;

-- Define the entity "top"
ENTITY top IS
    GENERIC (
        WIDTH : INTEGER := 10 -- Set default width of the input/output vectors
    );
    PORT (
        SW   : IN  STD_LOGIC_VECTOR(WIDTH - 1 DOWNTO 0); -- Input switches
        LEDS : OUT STD_LOGIC_VECTOR(WIDTH - 1 DOWNTO 0)  -- Output LEDs
    );
END ENTITY top;

There are three implementations of the architecture using different modeling styles:

  • Behavioral implementation using a process block
  • Concurrent signal assignment implementation (dataflow style)
  • Loop implementation with a for-generate block



Implementation 1

-- Dataflow architecture implementation
ARCHITECTURE dataflow OF top IS
BEGIN
    -- Use a concurrent signal assignment
    LEDS <= NOT SW; -- Assign switch values (inverted) to LEDs
END dataflow;



Implementation 2

-- Behavioral architecture implementation
architecture behavioral of top is
begin
  -- Process block to assign input switch values to output LEDs
  process (SW)
  begin
     LEDS <= NOT SW; -- Assign inverted switch values to LEDs
  end process;
end behavioral;



Implementation 3:

-- Generate-loop implementation
architecture dataflow of top is
begin
  -- Use a for-generate block
  GEN_LOOP: for i in 0 to WIDTH-1 generate
    LEDS(i) <= NOT SW(i);
  end generate GEN_LOOP;
end dataflow;



The following Tcl file specifies the pin assignments for the onboard slide switches and LEDs:

#============================================================
# Slide Switches
#============================================================

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[8]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[9]
set_location_assignment PIN_C10 -to SW[0]
set_location_assignment PIN_C11 -to SW[1]
set_location_assignment PIN_D12 -to SW[2]
set_location_assignment PIN_C12 -to SW[3]
set_location_assignment PIN_A12 -to SW[4]
set_location_assignment PIN_B12 -to SW[5]
set_location_assignment PIN_A13 -to SW[6]
set_location_assignment PIN_A14 -to SW[7]
set_location_assignment PIN_B14 -to SW[8]
set_location_assignment PIN_F15 -to SW[9]

#============================================================
# LEDs
#============================================================
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[8]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to LEDS[9]
set_location_assignment PIN_A8  -to LEDS[0]
set_location_assignment PIN_A9  -to LEDS[1]
set_location_assignment PIN_A10 -to LEDS[2]
set_location_assignment PIN_B10 -to LEDS[3]
set_location_assignment PIN_D13 -to LEDS[4]
set_location_assignment PIN_C13 -to LEDS[5]
set_location_assignment PIN_E14 -to LEDS[6]
set_location_assignment PIN_D14 -to LEDS[7]
set_location_assignment PIN_A11 -to LEDS[8]
set_location_assignment PIN_B11 -to LEDS[9]
#============================================================



Post-Lab Questions for Lab 1.1#

  1. Compare the different VHDL architectures implemented in Lab 1.1. After testing the design on the FPGA board, do they produce the same behavior?

  2. How does changing the position of a slide switch affect the corresponding LED in the design? Explain the expected behavior.

  3. What role does the WIDTH generic play in the design?

  4. Explain the purpose of the Tcl file used in this lab. What would happen if incorrect pin assignments or I/O standards were used?

Lab 1.2: Priority Encoder#

The following is the VHDL code listing for the top-level design entity (named top).

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

-- Define the top-level design entity
ENTITY top IS
    GENERIC (
        WIDTH : INTEGER := 10 -- Set default width of slide switches/LEDs
    );
    PORT (
        SW   : IN  STD_LOGIC_VECTOR(WIDTH - 1 DOWNTO 0); -- Input switches
        LEDS : OUT STD_LOGIC_VECTOR(WIDTH - 1 DOWNTO 0)  -- Output LEDs
    );
END ENTITY top;



There are five implementations of the architecture using different modeling styles:

Implementation 1: Behavioral Style

ARCHITECTURE behave OF top IS
    SIGNAL result : STD_LOGIC_VECTOR(3 DOWNTO 0);
BEGIN
    -- A priority encoder using a process block with explicit conditions
    PROCESS (SW)
    BEGIN
        IF SW(9) = '1' THEN
            result <= "1001";
        ELSIF SW(8) = '1' THEN
            result <= "1000";
        ELSIF SW(7) = '1' THEN
            result <= "0111";
        ELSIF SW(6) = '1' THEN
            result <= "0110";
        ELSIF SW(5) = '1' THEN
            result <= "0101";
        ELSIF SW(4) = '1' THEN
            result <= "0100";
        ELSIF SW(3) = '1' THEN
            result <= "0011";
        ELSIF SW(2) = '1' THEN
            result <= "0010";
        ELSIF SW(1) = '1' THEN
            result <= "0001";
        ELSE
            result <= "0000"; -- or invalid
        END IF;
    END PROCESS;

    LEDS(WIDTH-1 DOWNTO result'length) <= (OTHERS => '0');
    LEDS(result'length-1 DOWNTO 0) <= result;

END behave;



Implementation 2: Dataflow Style

ARCHITECTURE dataflow OF top IS
    CONSTANT NUM_BITS : INTEGER := 4;
    SIGNAL result : INTEGER;
BEGIN
     -- Priority encoder using selected signal assignment
    result <= 9 WHEN SW(9) = '1' ELSE
              8 WHEN SW(8) = '1' ELSE
              7 WHEN SW(7) = '1' ELSE
              6 WHEN SW(6) = '1' ELSE
              5 WHEN SW(5) = '1' ELSE
              4 WHEN SW(4) = '1' ELSE
              3 WHEN SW(3) = '1' ELSE
              2 WHEN SW(2) = '1' ELSE
              1 WHEN SW(1) = '1' ELSE
              0;

    -- Use a concurrent signal assignment to assign values to LEDs
    LEDS(WIDTH-1 DOWNTO NUM_BITS) <= (OTHERS => '0');
    LEDS(NUM_BITS-1 DOWNTO 0) <= STD_LOGIC_VECTOR(TO_UNSIGNED(result, NUM_BITS));

END dataflow;



Implementation 3: Behavioral (Process Block with For-Loop)

 behave OF top IS
    SIGNAL result : STD_LOGIC_VECTOR(3 DOWNTO 0);
BEGIN
    -- Implement a priority encoder in a process block
    PROCESS (SW)
    BEGIN
        result <= (OTHERS => '0'); -- default values that can be overwritten
        FOR i IN 0 TO WIDTH - 1 LOOP
            IF SW(i) = '1' THEN
                result <= STD_LOGIC_VECTOR(TO_UNSIGNED(i, result'length));
            END IF;
        END LOOP;
    END PROCESS;

    -- Use a concurrent signal assignment to assign values to LEDs
    LEDS(WIDTH-1 DOWNTO result'length) <= (OTHERS => '0');
    LEDS(result'length-1 DOWNTO 0) <= result;
END behave;



Implementation 4: Behavioral (Process Block with Exit)

ARCHITECTURE behave OF top IS
    CONSTANT NUM_BITS : INTEGER := 4;
BEGIN
    PROCESS (SW)
        VARIABLE result : INTEGER;
    BEGIN
        result := 0;
        FOR i IN WIDTH - 1 DOWNTO 0 LOOP
            IF SW(i) = '1' THEN
                result := i;
                EXIT; -- exit on highest-priority bit
            END IF;
        END LOOP;
        -- Assign values to the lower NUM_BITS of LEDs.
        LEDS(NUM_BITS-1 DOWNTO 0) <= STD_LOGIC_VECTOR(TO_UNSIGNED(result, NUM_BITS));
    END PROCESS;

    -- Use a concurrent signal assignment to assign values to the rest of LEDs
    LEDS(WIDTH-1 DOWNTO NUM_BITS) <= (OTHERS => '0');

END behave;



Implementation 5: Dataflow

ARCHITECTURE dataflow OF top IS
BEGIN
    -- Use a generate block
    GEN_LEDS : FOR i IN 0 TO WIDTH-1 GENERATE
    BEGIN
        -- concurrent assignment
        LEDS(i) <= '1' WHEN unsigned(SW(WIDTH-1 DOWNTO i)) /= 0 ELSE '0';
    END GENERATE GEN_LEDS;

END dataflow;



Post-Lab Questions for Lab 1.2#

  1. Compare the different VHDL architectures implemented in Lab 1.2. After testing the design on the FPGA board, do they produce the same behavior? Explain why or why not.

  2. Write the truth table for the priority encoder based on the VHDL implementations in this lab, showing the relationship between the input switch positions and the corresponding LED output values.

  3. Draw the digital logic circuit corresponding to a priority encoder (with 10-bit inputs and 4-bit outputs) based on the behavior described.

  4. Which previously tested implementation matches the following VHDL code?

ARCHITECTURE behave OF top IS
BEGIN
    -- A cumulative LED enabler
    PROCESS (SW)
    BEGIN
        LEDS <= (OTHERS => '0'); -- default all off
        FOR i IN WIDTH - 1 DOWNTO 0 LOOP
            IF SW(i) = '1' THEN
                LEDS(i DOWNTO 0) <= (OTHERS => '1');
            END IF;
        END LOOP;
    END PROCESS;

END behave;



Lab 1.3: 4b-to-10b Decoder#

The following is the VHDL code listing for the top-level design entity (named top).

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

-- Define the top-level design entity
ENTITY top IS
    GENERIC (
        WIDTH : INTEGER := 10 -- Set default width of slide switches/LEDs
    );
    PORT (
        SW   : IN  STD_LOGIC_VECTOR(WIDTH-1 DOWNTO 0); -- Input switches
        LEDS : OUT STD_LOGIC_VECTOR(WIDTH-1 DOWNTO 0)  -- Output LEDs
    );
END ENTITY top;



Implementation 1: Behavioral with CASE-WHEN Statement

ARCHITECTURE behave OF top IS
    SIGNAL result : STD_LOGIC_VECTOR(WIDTH-1 DOWNTO 0);
BEGIN
    -- Implement a 4b-to-10b decoder
    PROCESS (SW)
    BEGIN
        result <= (OTHERS => '0');
        CASE SW(3 DOWNTO 0) IS
            WHEN "0000" => result(0) <= '1';
            WHEN "0001" => result(1) <= '1';
            WHEN "0010" => result(2) <= '1';
            WHEN "0011" => result(3) <= '1';
            WHEN "0100" => result(4) <= '1';
            WHEN "0101" => result(5) <= '1';
            WHEN "0110" => result(6) <= '1';
            WHEN "0111" => result(7) <= '1';
            WHEN "1000" => result(8) <= '1';
            WHEN "1001" => result(9) <= '1';
            WHEN OTHERS => result <= (OTHERS => '0');
        END CASE;
    END PROCESS;

    LEDS <= result;

END behave;



Implementation 2: Dataflow with WITH-SELECT

ARCHITECTURE dataflow OF top IS
BEGIN
    -- Implement a 4b-to-10b decoder
    WITH SW(3 DOWNTO 0) SELECT
    LEDS <= "0000000001" WHEN "0000",
            "0000000010" WHEN "0001",
            "0000000100" WHEN "0010",
            "0000001000" WHEN "0011",
            "0000010000" WHEN "0100",
            "0000100000" WHEN "0101",
            "0001000000" WHEN "0110",
            "0010000000" WHEN "0111",
            "0100000000" WHEN "1000",
            "1000000000" WHEN "1001",
            (OTHERS => '0') WHEN OTHERS;

END dataflow;



Implementation 3: Behavioral with Indexing

ARCHITECTURE behave OF top IS
BEGIN
    -- Implement a 4b-to-10b decoder
    PROCESS (SW)
    BEGIN
        LEDS <= (OTHERS => '0'); -- Clear all outputs first
        LEDS(TO_INTEGER(UNSIGNED(SW(3 DOWNTO 0)))) <= '1';
    END PROCESS;
END behave;



Post-Lab Questions for Lab 1.3#

  1. Compare the different VHDL architectures implemented in Lab 1.3. After testing the design with the FPGA board, do they produce the same behavior?

  2. Write the truth table for the decoder (with 4-bit inputs and 10-bit outputs) based on the VHDL implementations in this lab, showing the relationship between the input switch positions and the corresponding LED output values.

  3. Complete the following VHDL code that implements a decoder using the sll (shift-left-logical) operator:

ARCHITECTURE dataflow OF top IS
    SIGNAL PATTERN : UNSIGNED(WIDTH-1 DOWNTO 0) := TO_UNSIGNED(1, WIDTH);
BEGIN
    LEDS <= STD_LOGIC_VECTOR(PATTERN SLL ___________________________________ );
END dataflow;



Lab 2: Combinational Logic Circuits Using Push Buttons and 7-Segment Displays as I/O Devices#

Objective#

  • Understand how combinational logic circuits can be implemented using VHDL and tested on the Intel DE10-Lite FPGA board using push buttons and 7-segment displays.

Lab Procedure#

  1. Setting up a Quartus project:

    • Open the Intel Quartus Prime Lite software.
    • Create a new FPGA design project for the Intel DE10-Lite FPGA board, using VHDL as the design entry method.
    • Ensure that the correct FPGA device is selected during project setup.
    • Ensure the name of the top-level design entity is specified correctly in the project.
    • Use the provided FPGA pin assignments by importing the supplied .tcl file.

  2. Analyzing VHDL demo code:

    • Analyze the provided VHDL-2008 code listings.
    • Compare the different implementations of the same design entity named top.

  3. Compiling and uploading the bitstream to the FPGA:

    • Try the given demo code, complete the compilation process, and upload the bitstream to the target FPGA.
    • Test the uploaded FPGA design.

  4. VHDL Coding Challenge: Write VHDL code that performs the following tasks:

    • Reads the 10-bit binary input from the slide switches.
    • Displays the corresponding 3-digit hexadecimal value on the 7-segment display module when KEY[0] is pressed.
    • Displays the corresponding 4-digit decimal value on the 7-segment display module when KEY[1] is pressed.
    • Otherwise, turn off all digits of the 7-segment display.

  5. Test the design on the FPGA board and take clear photos of the hardware setup and output display. Include these photos in your lab report.

  6. Rewrite the VHDL design to modularize the functionality as follows:

    • Implement a VHDL entity (named bcd7seg) for the BCD-to-7-segment decoder, which converts a 4-bit BCD digit into the corresponding 7-segment display pattern.
    • Implement a 10-bit binary to 4-digit BCD decoder (named bin2bcd), which converts a 10-bit binary number (0–1023) into four BCD digits (thousands, hundreds, tens, and units).
    • Instantiate both modules and use them in the top-level VHDL design (written in structural style).
    • Complete the compilation process and upload the bitstream to test the design on the FPGA development board to verify correct functionality.

  7. Open the RTL Viewer of the Quartus Prime Lite and capture a screenshot of the generated circuit schematic. Include this schematic in the lab report.



The following is the VHDL code listing for the top-level design entity (named top).

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

-- Define the entity "top"
ENTITY top IS
    PORT (
        KEY  : IN  STD_LOGIC_VECTOR(1 DOWNTO 0);
        HEX0 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX1 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX2 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX3 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX4 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX5 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0);
        HEX6 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0)
    );
END ENTITY top;



Demo 1

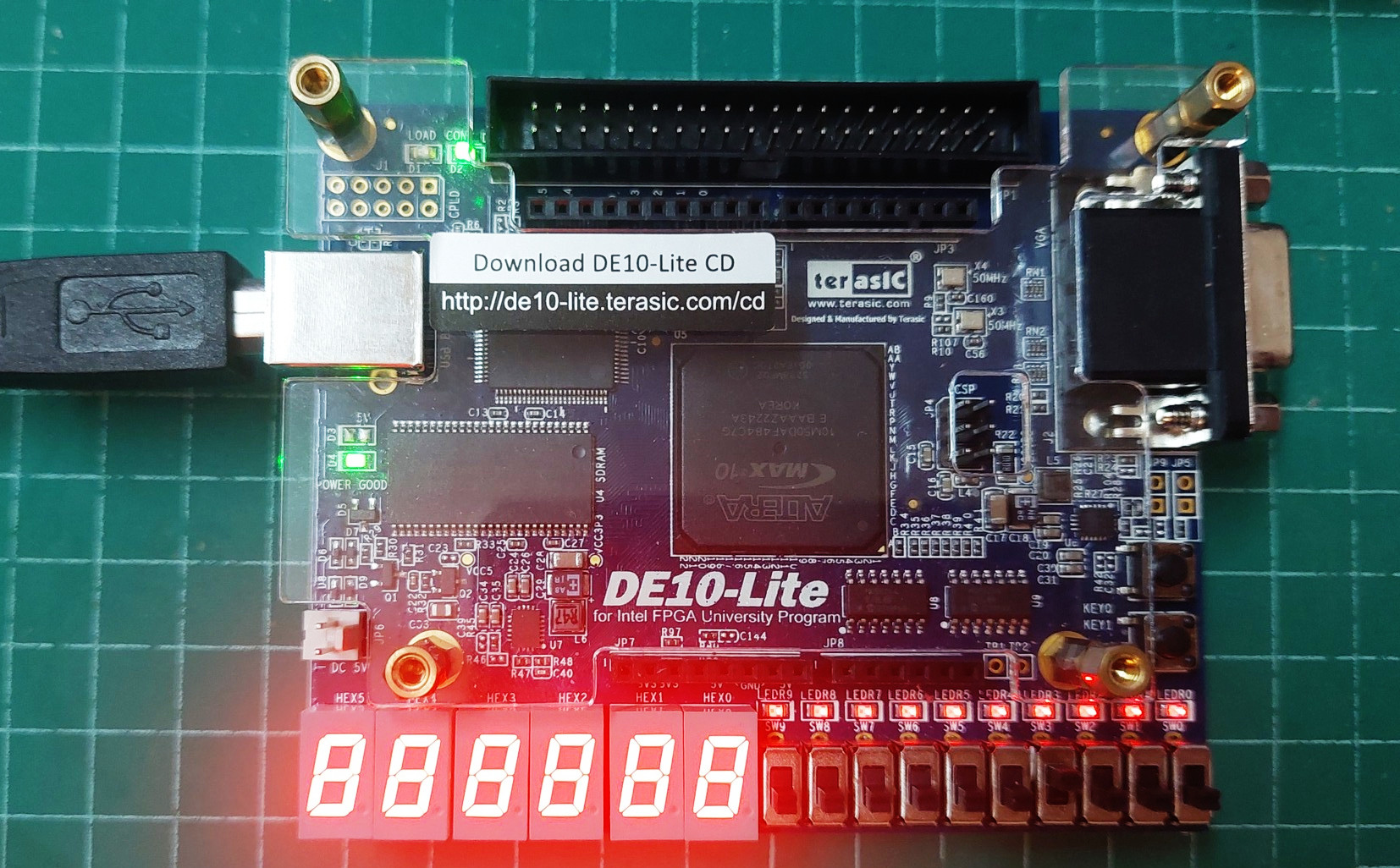

Press any KEY button to turn on all 7-segment displays and decimal point (dot).

ARCHITECTURE behave OF top IS
BEGIN
    PROCESS (KEY)
    BEGIN
        IF KEY /= "11" THEN -- (any key button is held pressed)
            HEX0 <= (OTHERS => '0');
            HEX1 <= (OTHERS => '0');
            HEX2 <= (OTHERS => '0');
            HEX3 <= (OTHERS => '0');
            HEX4 <= (OTHERS => '0');
            HEX5 <= (OTHERS => '0');
        ELSE -- Turn off all 7-segments and dots
            HEX0 <= (OTHERS => '1');
            HEX1 <= (OTHERS => '1');
            HEX2 <= (OTHERS => '1');
            HEX3 <= (OTHERS => '1');
            HEX4 <= (OTHERS => '1');
            HEX5 <= (OTHERS => '1');
        END IF;
    END PROCESS;
END behave;



Demo 2

Press any KEY button to display 12345 on the 6-digit 7-segment display module; otherwise, all segments remain off.

ARCHITECTURE behave OF top IS

    -- Function to decode a 4-bit BCD digit to a 7-segment pattern
    FUNCTION DEC7SEG(d : INTEGER RANGE 0 TO 15) RETURN STD_LOGIC_VECTOR IS
    BEGIN
        CASE d IS
            WHEN  0 => RETURN "11000000"; -- 0
            WHEN  1 => RETURN "11111001"; -- 1
            WHEN  2 => RETURN "10100100"; -- 2
            WHEN  3 => RETURN "10110000"; -- 3
            WHEN  4 => RETURN "10011001"; -- 4
            WHEN  5 => RETURN "10010010"; -- 5
            WHEN  6 => RETURN "10000010"; -- 6
            WHEN  7 => RETURN "11111000"; -- 7
            WHEN  8 => RETURN "10000000"; -- 8
            WHEN  9 => RETURN "10010000"; -- 9
            WHEN 10 => RETURN "10001000"; -- A
            WHEN 11 => RETURN "10000011"; -- b
            WHEN 12 => RETURN "11000110"; -- C
            WHEN 13 => RETURN "10100001"; -- d
            WHEN 14 => RETURN "10000110"; -- E
            WHEN 15 => RETURN "10001110"; -- F
            WHEN OTHERS => RETURN "11111111"; -- blank/off
        END CASE;
    END FUNCTION;

BEGIN
    PROCESS (KEY)
    BEGIN
        IF KEY /= "11" THEN -- any key button is held pressed
            HEX0 <= DEC7SEG(6);
            HEX1 <= DEC7SEG(5);
            HEX2 <= DEC7SEG(4);
            HEX3 <= DEC7SEG(3);
            HEX4 <= DEC7SEG(2);
            HEX5 <= DEC7SEG(1);
        ELSE
            HEX0 <= (OTHERS => '1');
            HEX1 <= (OTHERS => '1');
            HEX2 <= (OTHERS => '1');
            HEX3 <= (OTHERS => '1');
            HEX4 <= (OTHERS => '1');
            HEX5 <= (OTHERS => '1');
        END IF;
    END PROCESS;
END behave;



The following Tcl file specifies the pin assignments for the two active-low push buttons and the 6-digit 7-segment display module on the FPGA board.

#============================================================
# SEG7
#============================================================
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[7]
set_location_assignment PIN_C14 -to HEX0[0]
set_location_assignment PIN_E15 -to HEX0[1]
set_location_assignment PIN_C15 -to HEX0[2]
set_location_assignment PIN_C16 -to HEX0[3]
set_location_assignment PIN_E16 -to HEX0[4]
set_location_assignment PIN_D17 -to HEX0[5]
set_location_assignment PIN_C17 -to HEX0[6]
set_location_assignment PIN_D15 -to HEX0[7]
set_location_assignment PIN_C18 -to HEX1[0]
set_location_assignment PIN_D18 -to HEX1[1]
set_location_assignment PIN_E18 -to HEX1[2]
set_location_assignment PIN_B16 -to HEX1[3]
set_location_assignment PIN_A17 -to HEX1[4]
set_location_assignment PIN_A18 -to HEX1[5]
set_location_assignment PIN_B17 -to HEX1[6]
set_location_assignment PIN_A16 -to HEX1[7]
set_location_assignment PIN_B20 -to HEX2[0]
set_location_assignment PIN_A20 -to HEX2[1]
set_location_assignment PIN_B19 -to HEX2[2]
set_location_assignment PIN_A21 -to HEX2[3]
set_location_assignment PIN_B21 -to HEX2[4]
set_location_assignment PIN_C22 -to HEX2[5]
set_location_assignment PIN_B22 -to HEX2[6]
set_location_assignment PIN_A19 -to HEX2[7]
set_location_assignment PIN_F21 -to HEX3[0]
set_location_assignment PIN_E22 -to HEX3[1]
set_location_assignment PIN_E21 -to HEX3[2]
set_location_assignment PIN_C19 -to HEX3[3]
set_location_assignment PIN_C20 -to HEX3[4]
set_location_assignment PIN_D19 -to HEX3[5]
set_location_assignment PIN_E17 -to HEX3[6]
set_location_assignment PIN_D22 -to HEX3[7]
set_location_assignment PIN_F18 -to HEX4[0]
set_location_assignment PIN_E20 -to HEX4[1]
set_location_assignment PIN_E19 -to HEX4[2]
set_location_assignment PIN_J18 -to HEX4[3]
set_location_assignment PIN_H19 -to HEX4[4]
set_location_assignment PIN_F19 -to HEX4[5]
set_location_assignment PIN_F20 -to HEX4[6]
set_location_assignment PIN_F17 -to HEX4[7]
set_location_assignment PIN_J20 -to HEX5[0]
set_location_assignment PIN_K20 -to HEX5[1]
set_location_assignment PIN_L18 -to HEX5[2]
set_location_assignment PIN_N18 -to HEX5[3]
set_location_assignment PIN_M20 -to HEX5[4]
set_location_assignment PIN_N19 -to HEX5[5]
set_location_assignment PIN_N20 -to HEX5[6]
set_location_assignment PIN_L19 -to HEX5[7]

#============================================================
# KEY
#============================================================
set_instance_assignment -name IO_STANDARD "3.3 V SCHMITT TRIGGER" -to KEY[0]
set_instance_assignment -name IO_STANDARD "3.3 V SCHMITT TRIGGER" -to KEY[1]
set_location_assignment PIN_B8 -to KEY[0]
set_location_assignment PIN_A7 -to KEY[1]

#============================================================

Note

  • This Tcl script sets the input I/O standard to 3.3V with a Schmitt Trigger input buffer for the push buttons (KEY).
  • Schmitt Triggers are useful for debouncing noisy or slow-changing signals like push buttons.

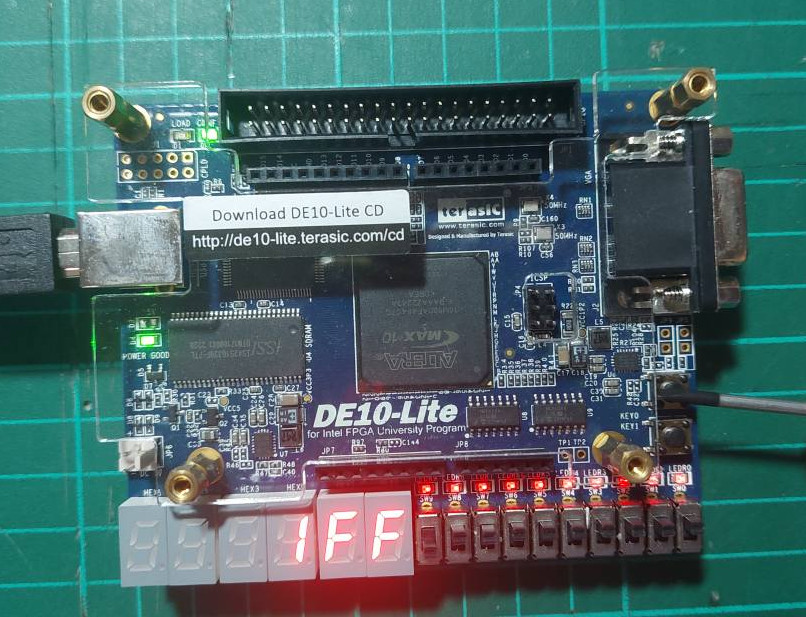

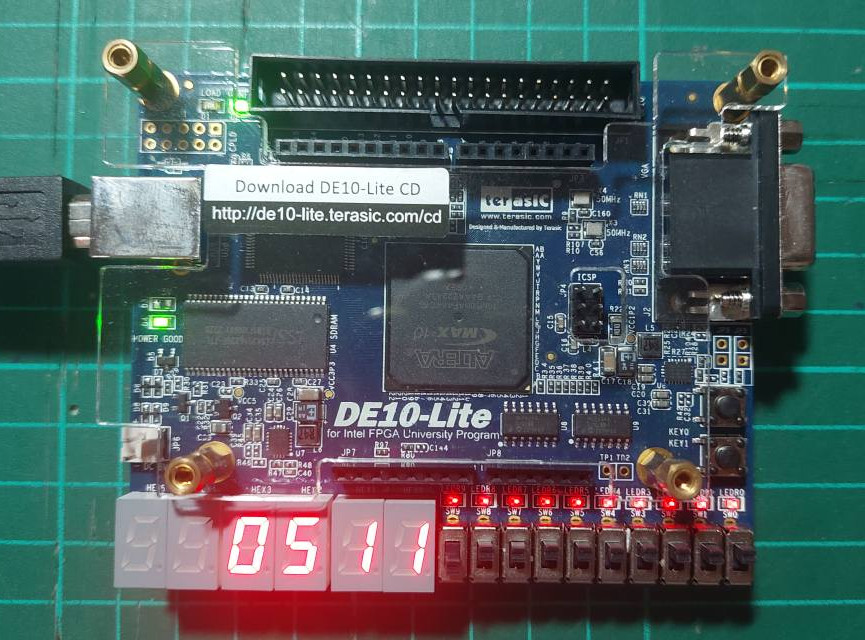

Figure: Setting of the slide switches corresponding to 0511 (dec) and 1FF (hex).

Lab 3: Binary-to-Gray Code Conversion & VHDL Simulation#

Objective#

  • Learn how to model an n-bit binary-to-gray code convert in VHDL.
  • Learn how to write VHDL testbench and use a simulator to verify the design.

Binary-to-Gray Code Converter#

N-bit binary-to-gray code conversion can be expressed by the following Boolean equations:

The following table shows 4-bit binary code and gray code:

b₃b₂b₁b₀|g₃g₂g₁g₀
   0000 | 0000
   0001 | 0001
   0010 | 0011
   0011 | 0010
   0100 | 0110
   0101 | 0111
   0110 | 0101
   0111 | 0100



Lab Procedure:#

  1. Write synthesizable VHDL code that implements an N-bit binary-to-gray code converter.

    • Use N as a generic for a positive integer value (default: 8)
    • SW(N-1 downto 0) is the input signal representing the N-bit binary code.
    • LEDS(N-1 downto 0) is the output signal representing the corresponding N-bit Gray code.

  2. Write a VHDL testbench to verify the VHDL code and simulate the testbench using a VHDL simulator.

    • Capture the waveforms of the design’s I/O signals generated during VHDL simulation.

  3. Test the design using the DE10-Lite FPGA board with N = 10.

    • Take photos of the FPGA board for the following test cases:
      • SW = "0000011011"
      • SW = "0101011011"
    • Demonstrate your design to the lab instructor for validation.

Lab 4: ROM Modeling in VHDL#

Objective#

  • Learn how to model a ROM in VHDL.
  • Learn how a ROM model in VHDL is implemented using FPGA resources.

Lab Procedure:#

  1. Write a VHDL code for the following module:

    • It uses the positions of the six slide switches (SW) as a 6-bit address input to a ROM or lookup table (LUT).
    • The ROM stores 24-bit constants, where each constant encodes six 4-bit BCD values.
    • The 6 × 4-bit BCD outputs from the ROM are connected to six BCD-to-7-segment decoders (they can also be implemented as ROMs as shown in bcd2seg7.vhd).
    • The outputs of the decoders drive a 6-digit 7-segment display.
    • The ROM must be implemented as a separate VHDL module (rom16x24.vhd) and instantiated in the top-level design.
    • The ROM must be preloaded with specific values for the first 16 addresses, as provided below.
    • For all remaining addresses, the ROM should return the value corresponding to "------" on the 7-segment display.

  2. Test your FPGA design using the DE10-Lite FPGA board:

    • Compile and upload your design to the FPGA board.
    • Use the slide switches to change the ROM address and observe the corresponding 7-segment display.
    • Demonstrate your design to the lab instructor for validation.
-- File: rom16x24.vhd
LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

ENTITY rom16x24 IS
    PORT (
        addr : IN  STD_LOGIC_VECTOR(3 DOWNTO 0);
        data : OUT STD_LOGIC_VECTOR(23 DOWNTO 0)
    );
END ENTITY;

ARCHITECTURE behavioral OF rom16x24 IS
BEGIN
    -- This VHDL code can be inferred as a ROM by synthesis tools.
    PROCESS (addr)
    BEGIN
        CASE addr IS
            WHEN "0000" => data <= x"000000";
            WHEN "0001" => data <= x"111111";
            WHEN "0010" => data <= x"222222";
            WHEN "0011" => data <= x"333333";
            WHEN "0100" => data <= x"444444";
            WHEN "0101" => data <= x"555555";
            WHEN "0110" => data <= x"666666";
            WHEN "0111" => data <= x"777777";
            WHEN "1000" => data <= x"888888";
            WHEN "1001" => data <= x"999999";
            WHEN "1010" => data <= x"AAAAAA";
            WHEN "1011" => data <= x"BBBBBB";
            WHEN "1100" => data <= x"CCCCCC";
            WHEN "1101" => data <= x"DDDDDD";
            WHEN "1110" => data <= x"EEEEEE";
            WHEN "1111" => data <= x"FFFFFF";
            WHEN OTHERS => NULL;
        END CASE;
    END PROCESS;
END ARCHITECTURE;

-- File: bcd2seg7.vhd
LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

ENTITY bcd2seg7 IS
    PORT (
        bcd : IN STD_LOGIC_VECTOR(3 DOWNTO 0);
        seg7 : OUT STD_LOGIC_VECTOR(7 DOWNTO 0)
    );
END ENTITY;

ARCHITECTURE dataflow OF bcd2seg7 IS
BEGIN
    WITH bcd SELECT
        seg7 <= "11000000" WHEN "0000", -- 0
        "11111001" WHEN "0001", -- 1
        "10100100" WHEN "0010", -- 2
        "10110000" WHEN "0011", -- 3
        "10011001" WHEN "0100", -- 4
        "10010010" WHEN "0101", -- 5
        "10000010" WHEN "0110", -- 6
        "11111000" WHEN "0111", -- 7
        "10000000" WHEN "1000", -- 8
        "10010000" WHEN "1001", -- 9
        "10001000" WHEN "1010", -- A
        "10000011" WHEN "1011", -- b
        "11000110" WHEN "1100", -- C
        "10100001" WHEN "1101", -- d
        "10000110" WHEN "1110", -- E
        "10001110" WHEN "1111", -- F
        (OTHERS => '1') WHEN OTHERS;
END ARCHITECTURE;

Figure: Six-digit 7-segment display showing 888888, corresponding to the address 0000001000 (bin) set by the slide switches.

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Created: 2025-05-27 | Last Updated: 2025-05-31
