Tutorial: FPGA Boards#

FPGA Boards for Lab Sessions#

Terasic, a company based in Taiwan, has developed many FPGA boards and kits primarily for educational purposes. These boards are widely used in university-level courses around the world. Terasic FPGA boards typically feature Intel (formerly Altera) FPGA devices, such as:

  • DE0-CV: Cyclone V, 5CEBA4F23C7
  • DE0-Nano: Cyclone IV-E, EP4CE22F17C6
  • DE0-Nano-SoC: Cyclone V SoC, 5CSEMA4U23C6
  • DE1-SoC: Cyclone V SoC, 5CSEMA5F31C6
  • DE2-115: Cyclone IV-E, EP4CE115F29C7
  • DE10-Standard: Cyclone V SoC, 5CSXFC6D6F31C6
  • DE10-Nano: Cyclone V-SE, 5CSEBA6U2317
  • DE10-Lite: MAX10, 10M50DAF484C7G

There are two Intel/Altera FPGA boards available for lab sessions:

  • DE10-Lite Board (preferred)
  • DE0-CV Board

In most practical labs, both FPGA boards offer similar functionality and can be used interchangeably, depending on availability. However, the DE10-Lite is generally preferred. Below is an overview of both FPGA boards.



Terasic DE10-Lite Board#

A summary of the technical specifications for the DE10-Lite board (User Manual) is provided below:

  • Intel / Altera MAX10 FPGA (10M50DAF484C7G Device)
    • Embedded configuration flash memory (CFM)
    • On-chip ADC
  • Onboard USB Blaster (FT245 + MAX-II CPLD)
    • Used for FPGA programming and JTAG-based debugging
    • Type B USB connector
    • 24MHz clock oscillator
    • Clock generator IC with 4 clock outputs (3.3-V LVTTL)
      • UBT_CLK_24 (24MHz for USB Blaster)
      • ADC_CLK_10 (10MHz for on-chip ADC inside MAX10): PIN_N5
      • MAX10_CLK1_50 (50MHz for MAX10): PIN_P11
      • MAX10_CLK1_50 (50MHz for MAX10): PIN_N14
  • Switches/Buttons/LEDs
    • 10x LEDs, active-high (LEDR[9:0])
    • 10x Slide Switches (SW[9:0])
    • 2x User-defined Push Buttons (KEY[1:0])
      • active-low, debounced with on-chip Schmitt Trigger inputs
    • 6x 7-Segments (HEX0..HEX5)
      • common anode (CA) type
  • Two 2x20 GPIO Header (3.3V I/Os)
  • Arduino UNO R3 Header (3.3V I/Os)
    • 1x ADC with 6x analog input channels ADC_IN0 .. ADC_IN5)
  • G-Sensor: ADXL345 (3.3V)
    • 3-axis accelerometer
    • SPI or I2C interface
  • 4-bit Resistor DAC + VGA connector (15-pin D-sub connector)
  • 64MB SDRAM, 16 bits data bus
  • Power supply: 5VDC input from USB port or 5V/GND pin headers.

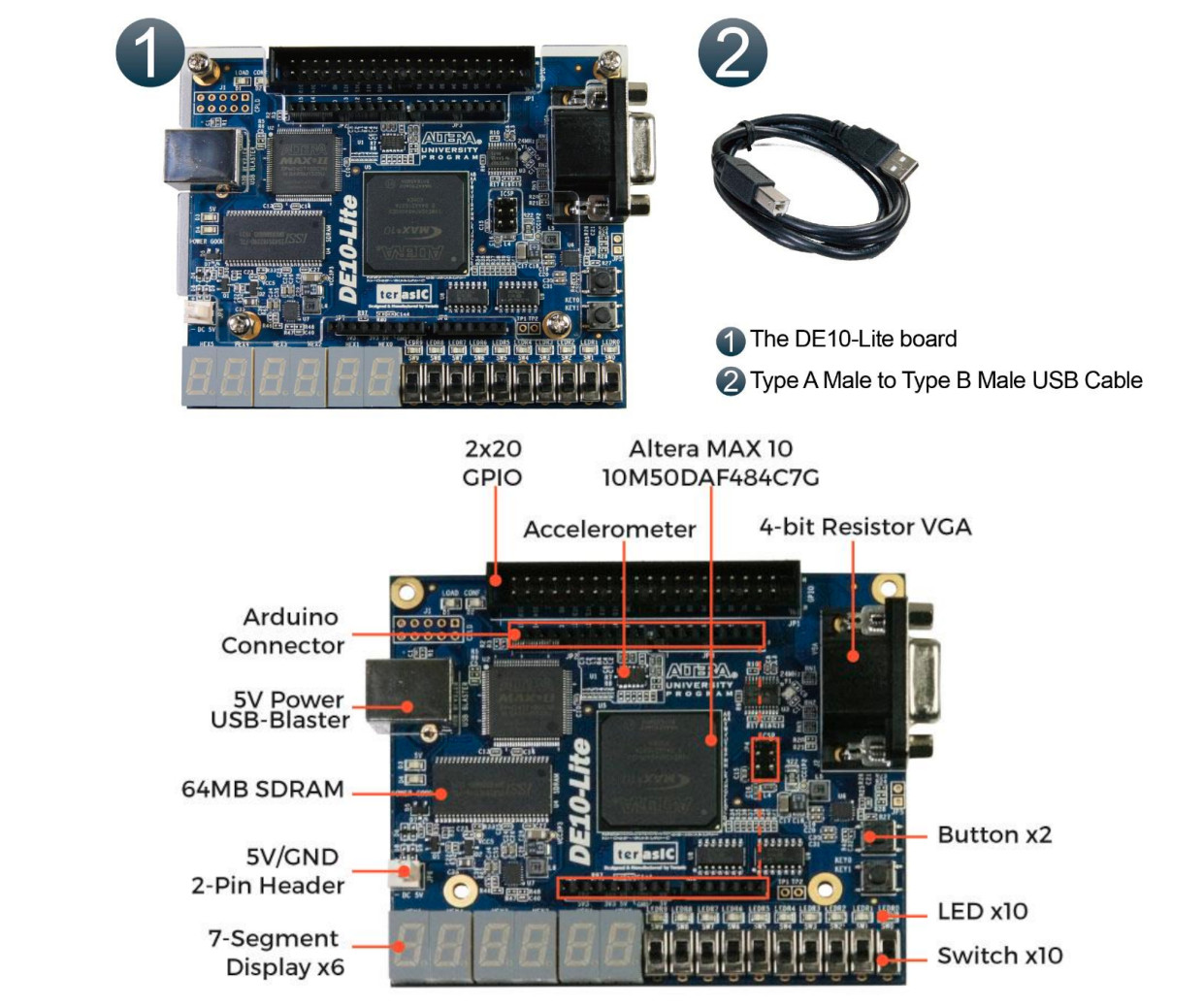

Figure: DE10-Lite Board

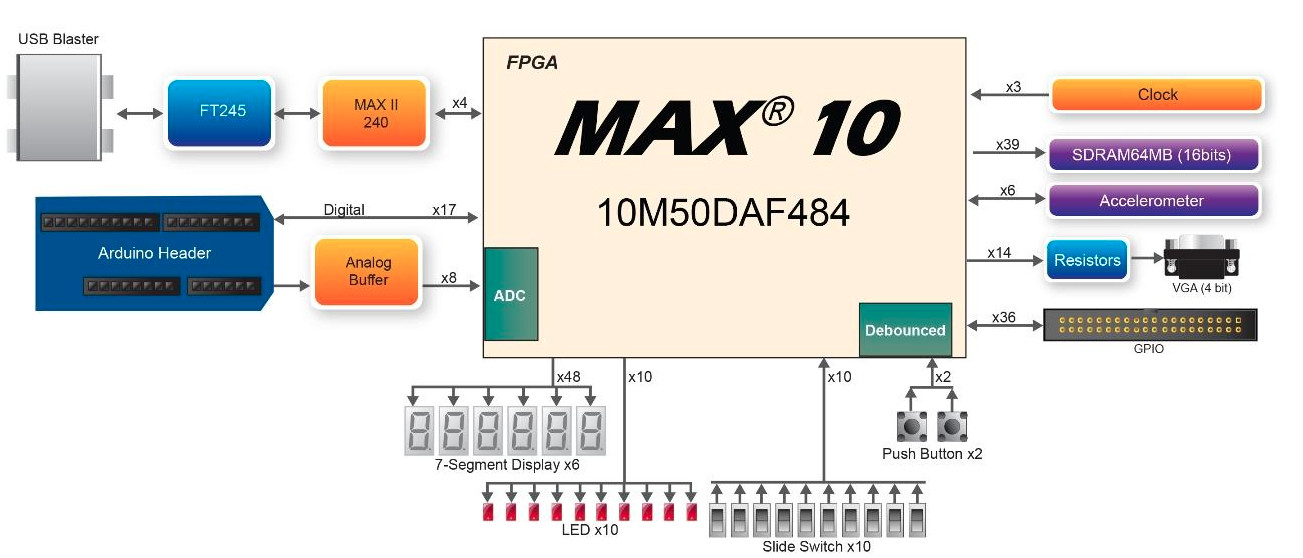

Figure: DE10-Lite Block Diagram

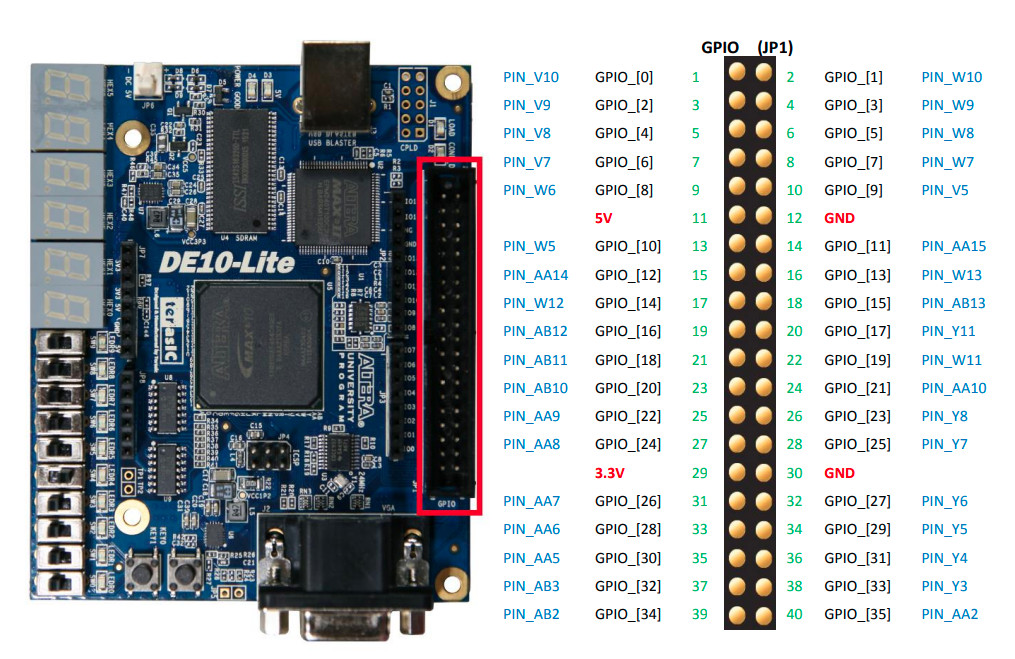

Figure: DE10-Lite 2x20 Connectors for I/O Pins

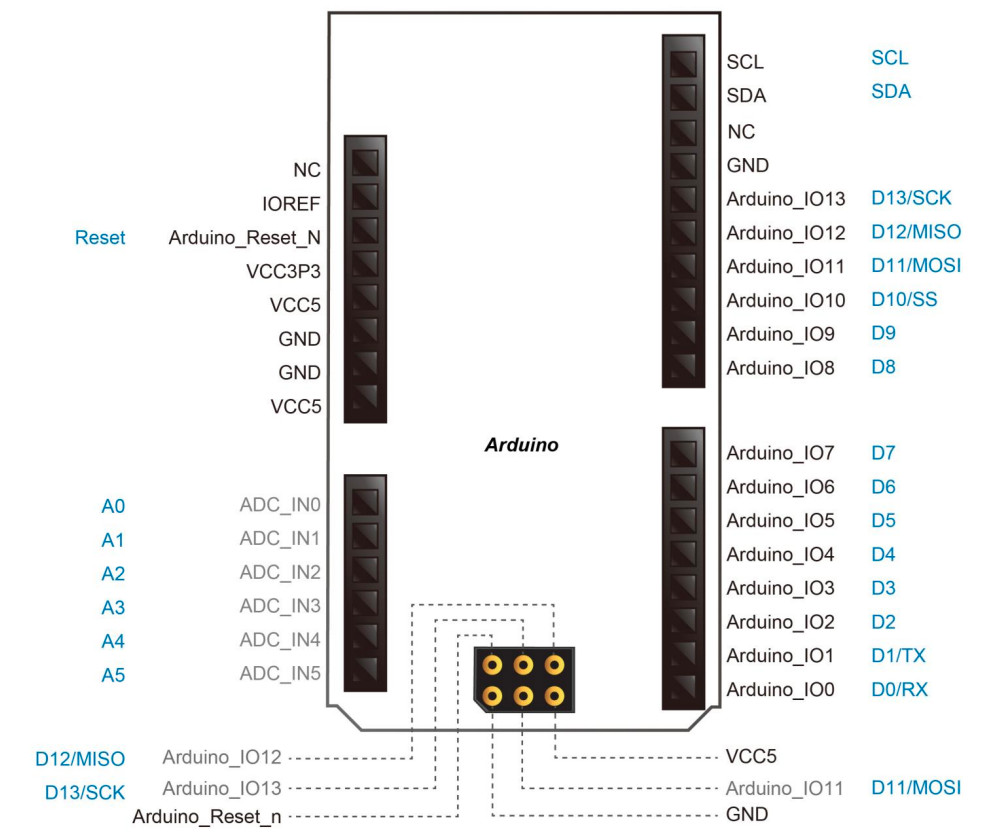

Figure: DE10-Lite Arduino Shield I/O Pins

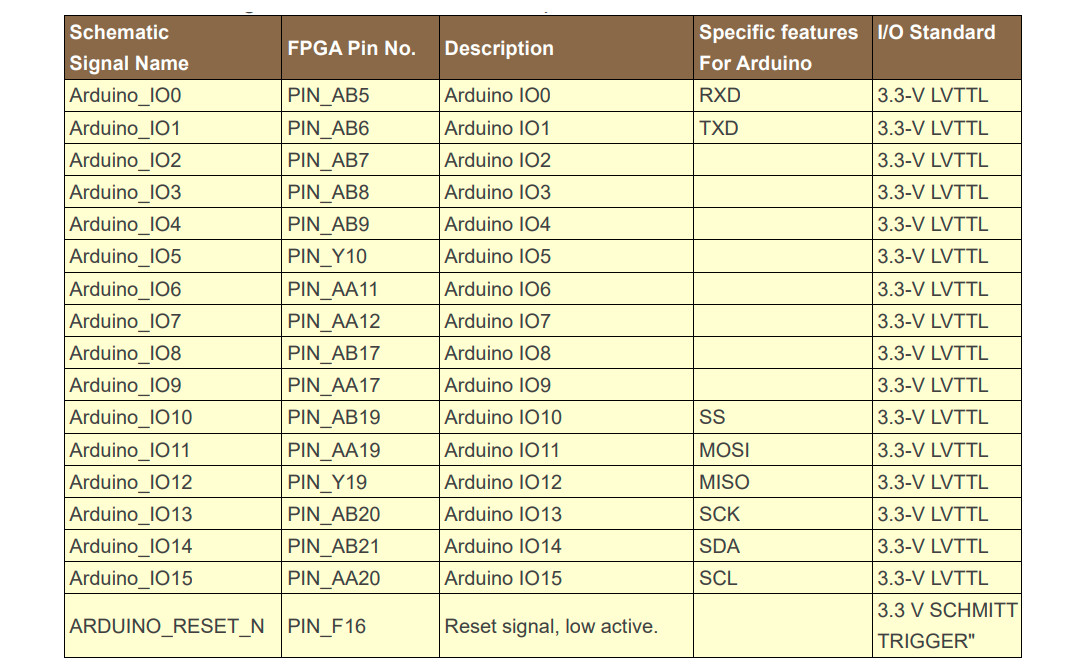

Table: Pin locations for DE10-Lite Arduino Shield I/O Pins



Terasic DE0-CV Board#

A summary of the technical specifications for the DE0-CV board is provided below:

  • Intel / Altera Cyclone V FPGA (5CEBA4F23C7N Device)
  • External serial configuration memory IC (EPCS64)
  • Onboard USB Blaster (FT245 + MAX-II CPLD)
    • Type B USB connector
  • 50MHz clock oscillator (CLK_50)
    • 4x buffered 50MHz clocks
  • Switches/Buttons/LEDs
    • 10x LEDs (active-high)
    • 10x Slide Switches
    • 5x Push Buttons
      • active-low, debounced with a Schmitt Trigger IC (74AUC17)
      • 4x User-defined (KEY[3:0])
      • 1x CPU Reset (RESET_N)
    • 6x 7-Segments (HEX0..HEX5)
      • Common anode (CA) type
  • Two 2x20 GPIO Header (3.3V I/Os)
  • 4-bit Resistor DAC + VGA connector (15-pin D-sub connector)
  • 64MB SDRAM, 16 bits data bus
  • Micro SD Card Socket (SPI and 4-bit SD mode)
  • PS/2 mouse/keyboard
  • Supply voltage: 5V (via USB or DC Power Jack)
  • 1x slide switch for RUN or PROG (JTAG/AS modes)
    • RUN position: uploading a bitstream file (.sof) to FPGA
    • PROG position: flash a configuration data file (.pof) to the EPCS64

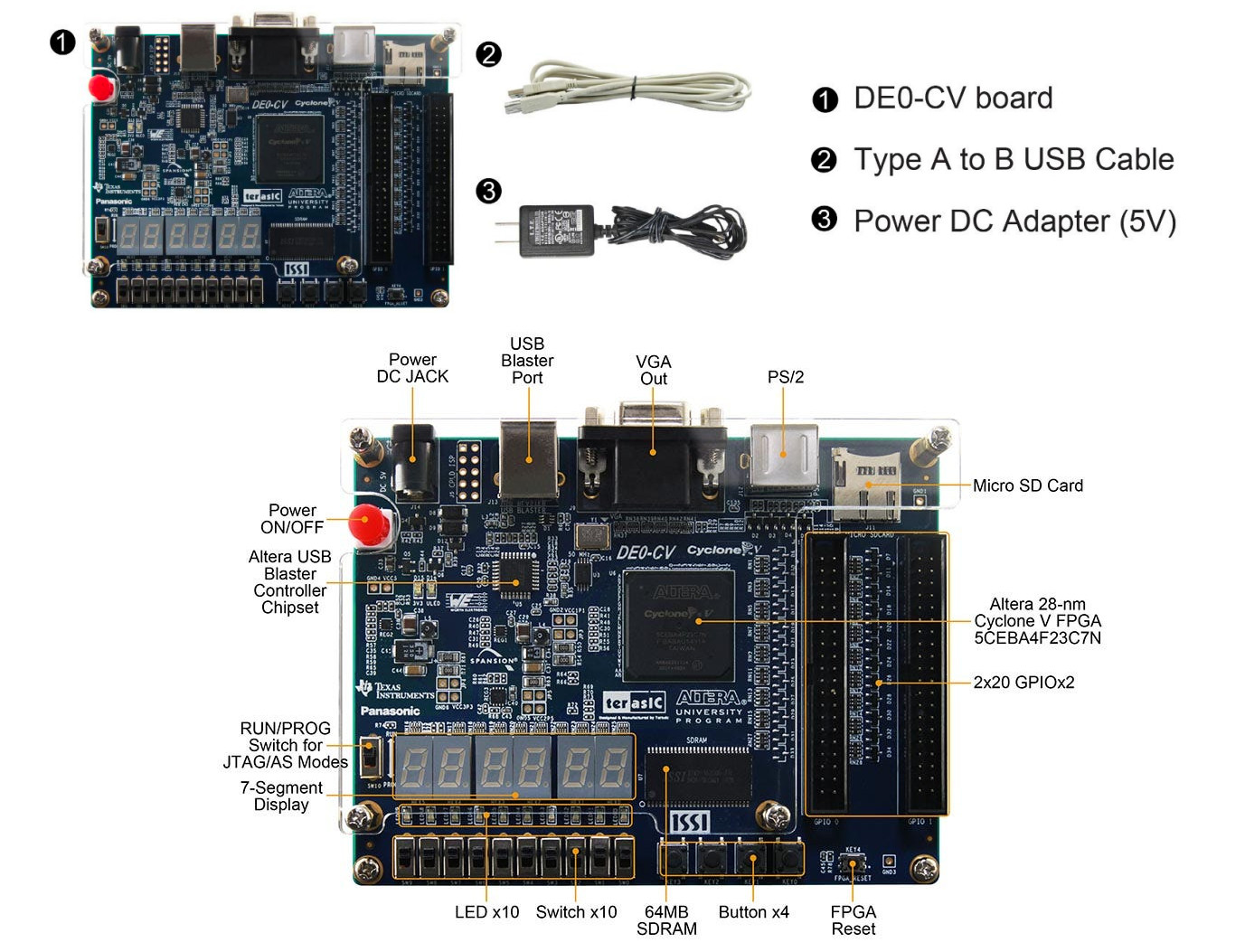

Figure: DE0-CV Board

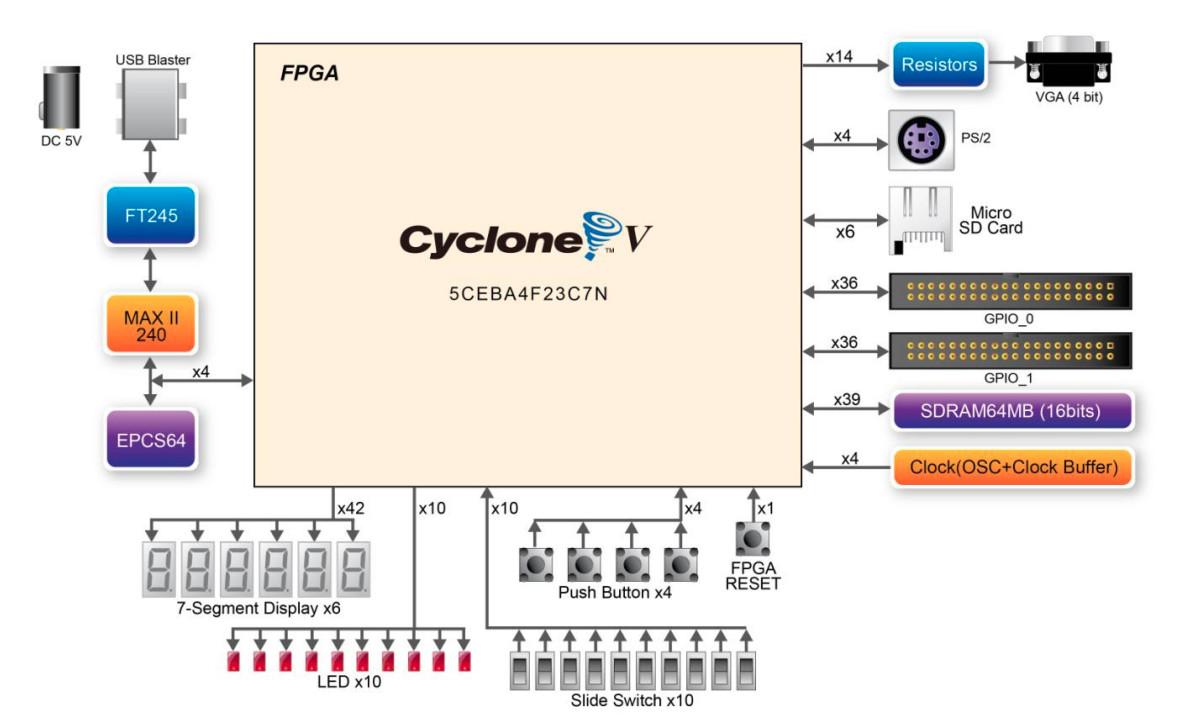

Figure: DE0-CV Block Diagram



⚠️ Electrical Safety#

  • Do not exceed 3.3V on any I/O pin. Short circuits, excessive I/O current draw or overvoltage can permanently damage the FPGA.
  • Read the FPGA board manual carefully, and always verify the I/O pin functions and their physical locations before assigning them in your design.
  • When interfacing with external components, verify voltage compatibility. Ensure that all I/O voltages are within the 0V to +3.3V range.
  • All external circuits must share a common ground (GND) with the FPGA board to ensure correct logic level references and prevent unpredictable behavior.
  • Be aware that many Arduino shields operate at 5V, while the DE10-Lite FPGA I/O pins are not 5V-tolerant. Connecting a 5V shield directly can damage the FPGA. Use only 3.3V-compatible shields or add level-shifting circuits as needed.
