Tutorial: Guidelines for Using the DE0-CV FPGA Board#

Terasic DE0-CV Board
FPGA Board Comparison
VHDL Demo Code

Terasic DE0-CV Board#

As an alternative to the DE10-Lite FPGA board, the DE0-CV board can also be used for learning and project-based exploration. Below is a summary of the technical specifications for the DE0-CV board:

Intel / Altera Cyclone V FPGA (5CEBA4F23C7N Device)
- with ~49K Logic Elements (LEs)
Onboard serial configuration memory IC (EPCS64)
Onboard USB Blaster (FT245 + MAX-II CPLD) for JTAG programming
- Type B USB connector
50MHz clock oscillator
- 4x buffered 50MHz clocks
Switches/Buttons/LEDs
- 10x LEDs (active-high)
- 10x Slide Switches
- 5x Push Buttons
  - active-low, debounced with a Schmitt Trigger IC (74AUC17)
  - 4x User-defined (KEY[3:0])
  - 1x CPU Reset (active-low)
- 6x 7-Segments (HEX0..HEX5)
  - Common anode (CA) type (active-low)
Two 2x20 GPIO Header (+3.3V I/Os)
- Each pin on the expansion headers is connected to two diodes (Schottky diodes) and a series resistor for protection against high (+3.3V) or low voltage (GND) level.
- There are 5V and 3.3V pins which can provide a total of 5W power.
4-bit Resistor DAC + VGA connector (15-pin D-sub connector)
64MB SDRAM, 16 bits data bus
Micro SD Card Socket (both SPI and 4-bit SD mode)
PS/2 mouse/keyboard
Supply voltage: 5V (via a DC Power Jack) with a power on/off toggle switch
1x slide switch for RUN or PROG (selection between JTAG and AS modes)
- RUN position: uploading a bitstream file to the on-chip SRAM-based configuration memory of the FPGA
- PROG position: flash a configuration data file to the EPCS64 using the Active-Serial configuration mode.

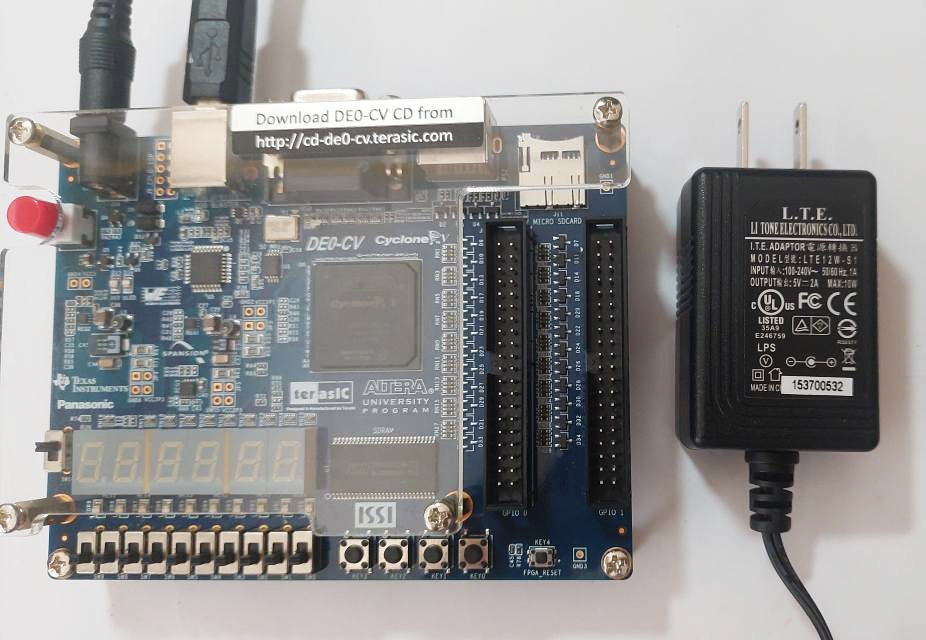

Figure: DE0-CV FPGA Board (with AC-to-5VDC Adapter)

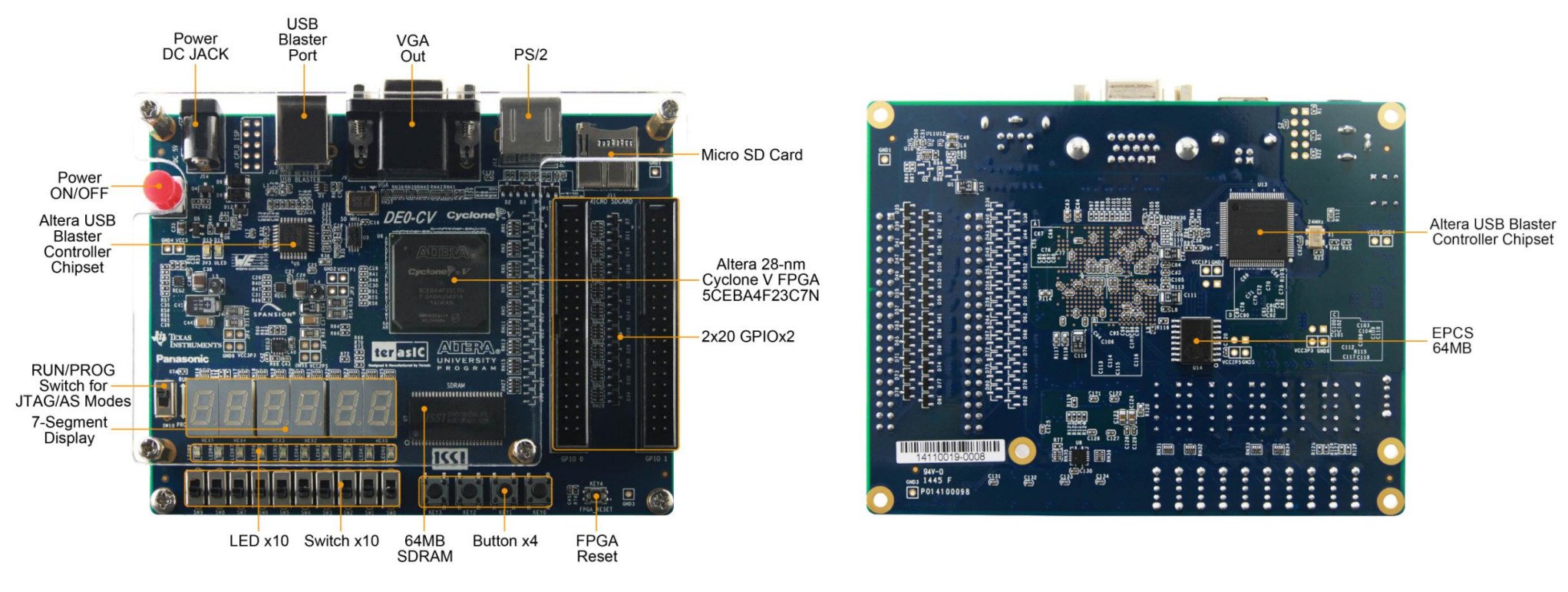

Figure: The front and back side of the DE0-CV board (Source: Terasic)

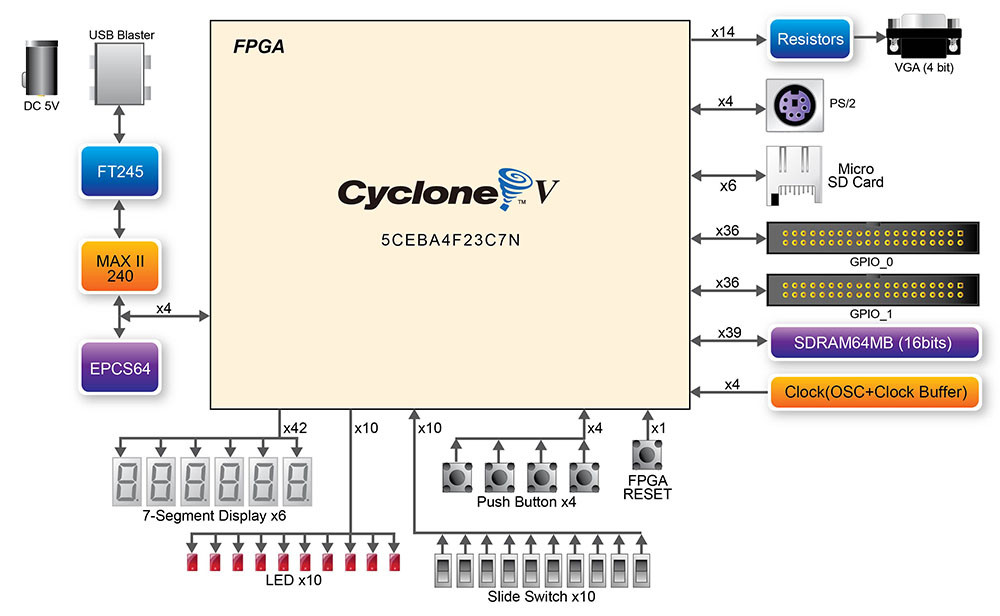

Figure: DE0-CV Block Diagram (Source: Terasic)

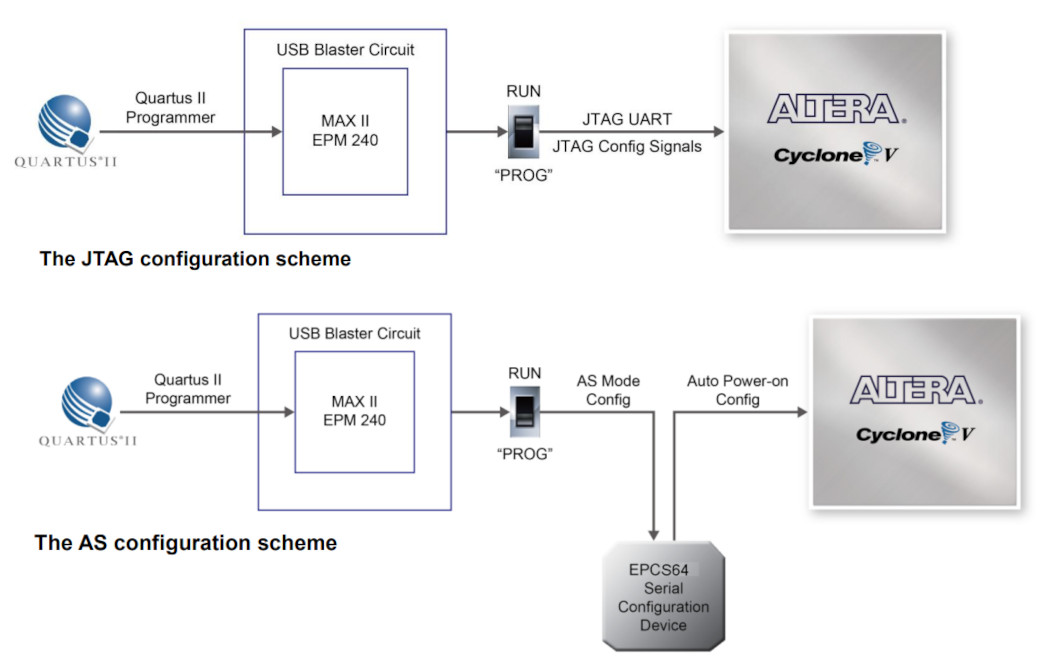

Figure: FPGA Configuration Modes — JTAG vs. AS (Source: Terasic)

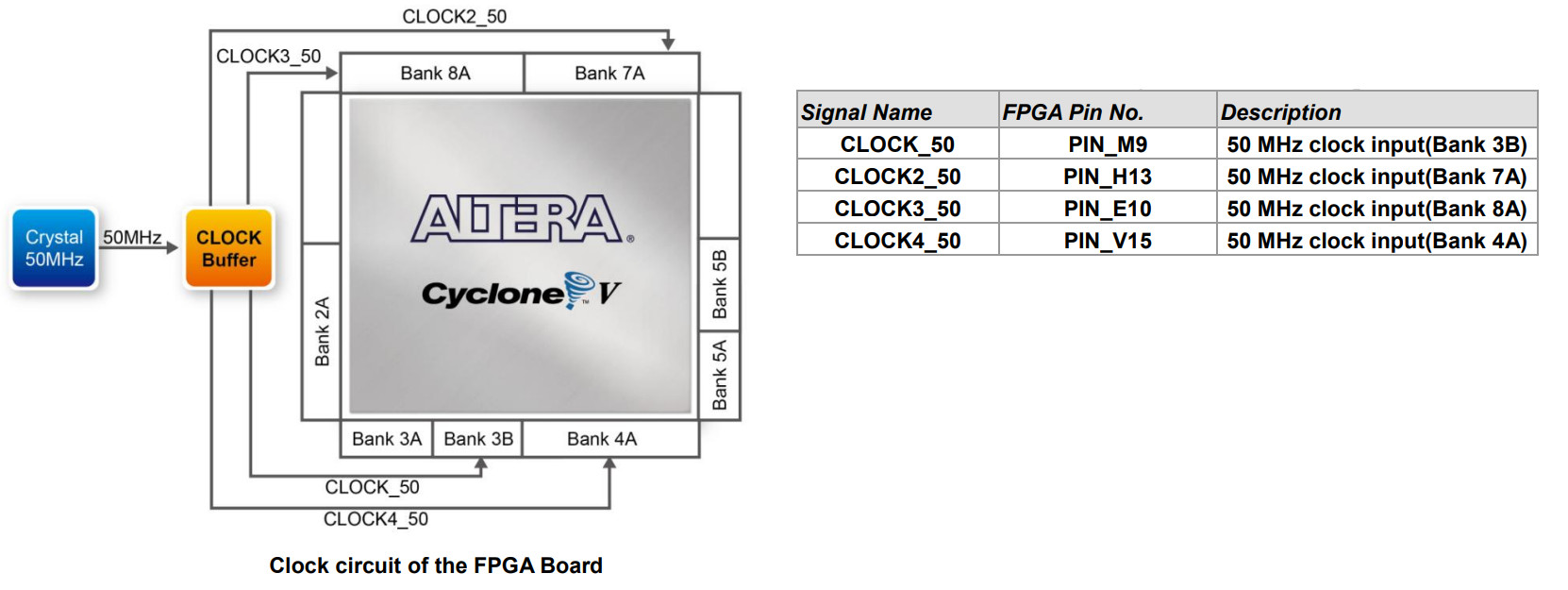

Figure: Clock inputs on the DE0-CV board (Source: Terasic)

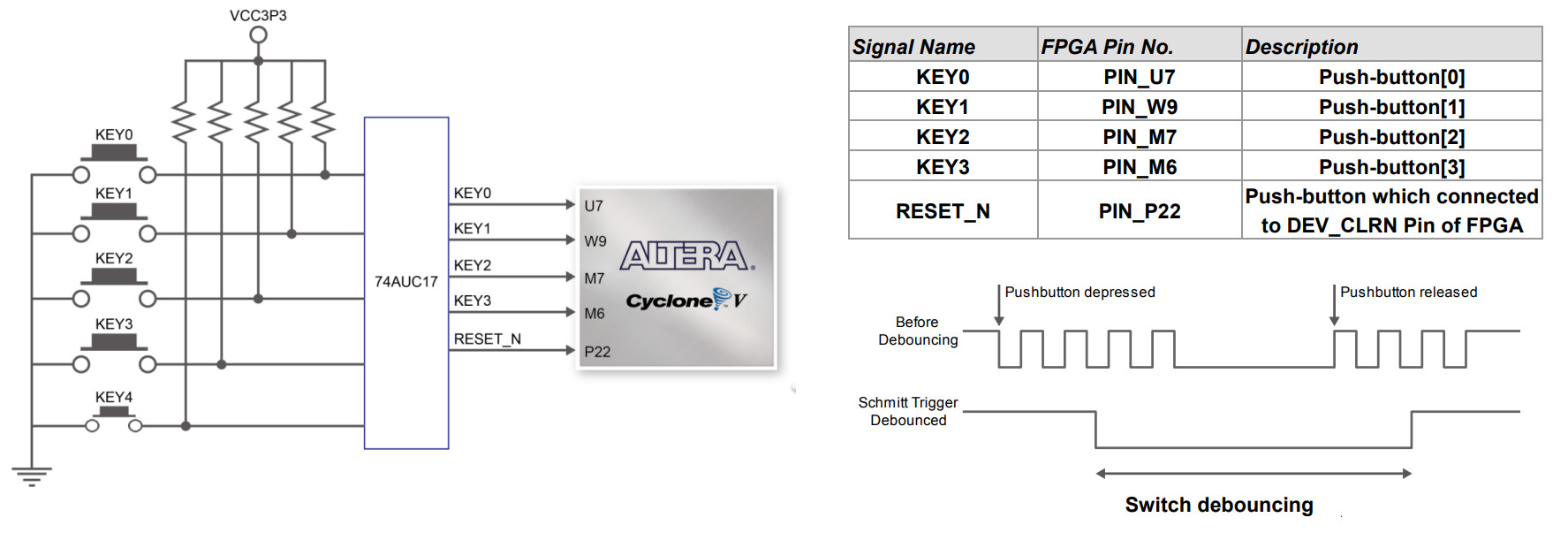

Figure: Push buttons (KEYS) on the DE0-CV board (Source: Terasic)

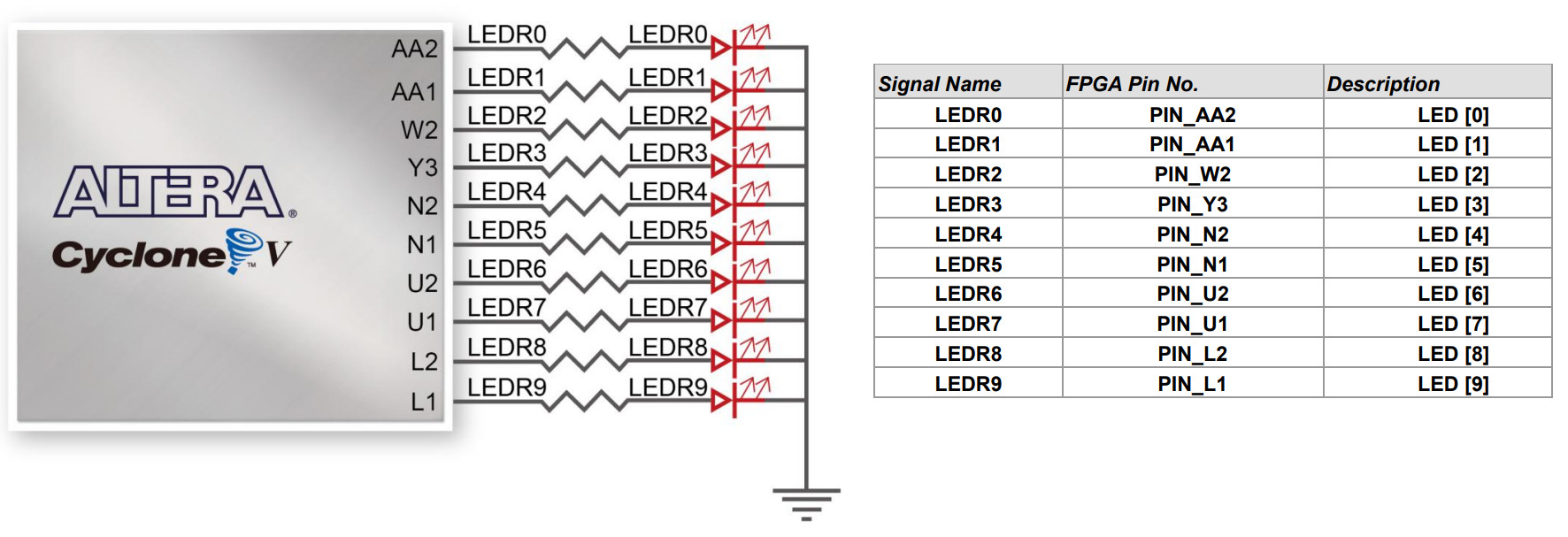

Figure: 10-bit Red LEDs on the DE0-CV board (Source: Terasic)

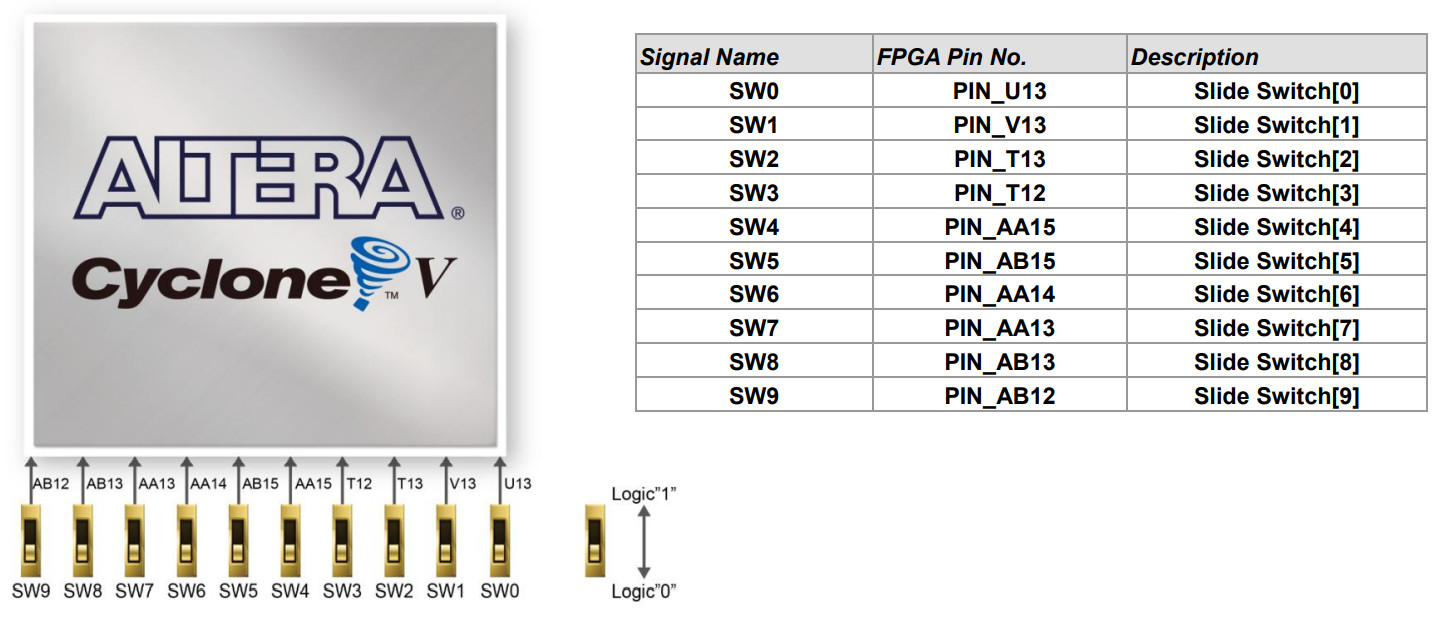

Figure: 10-bit Slide Switches (Source: Terasic)

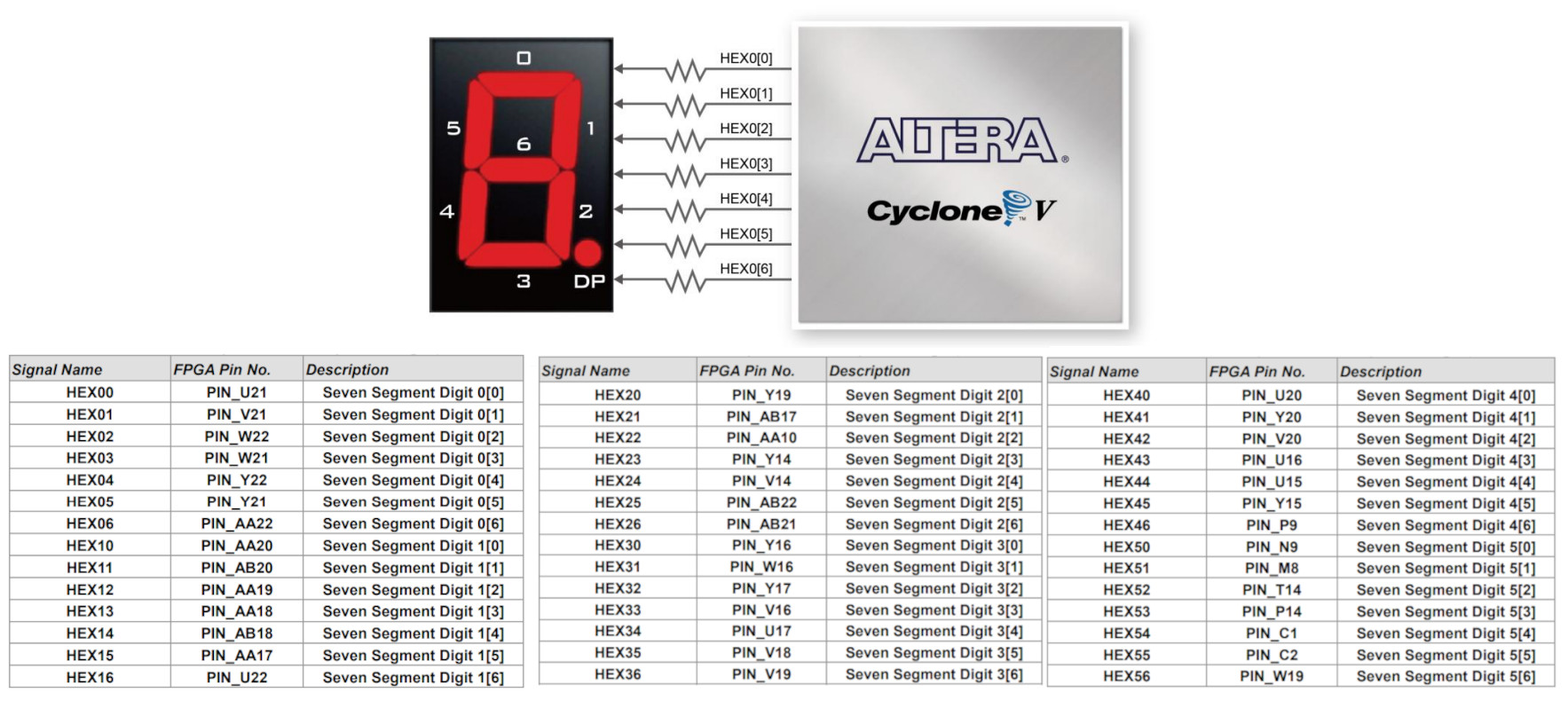

Figure: 6-Digit 7-Segment Display (Source: Terasic)

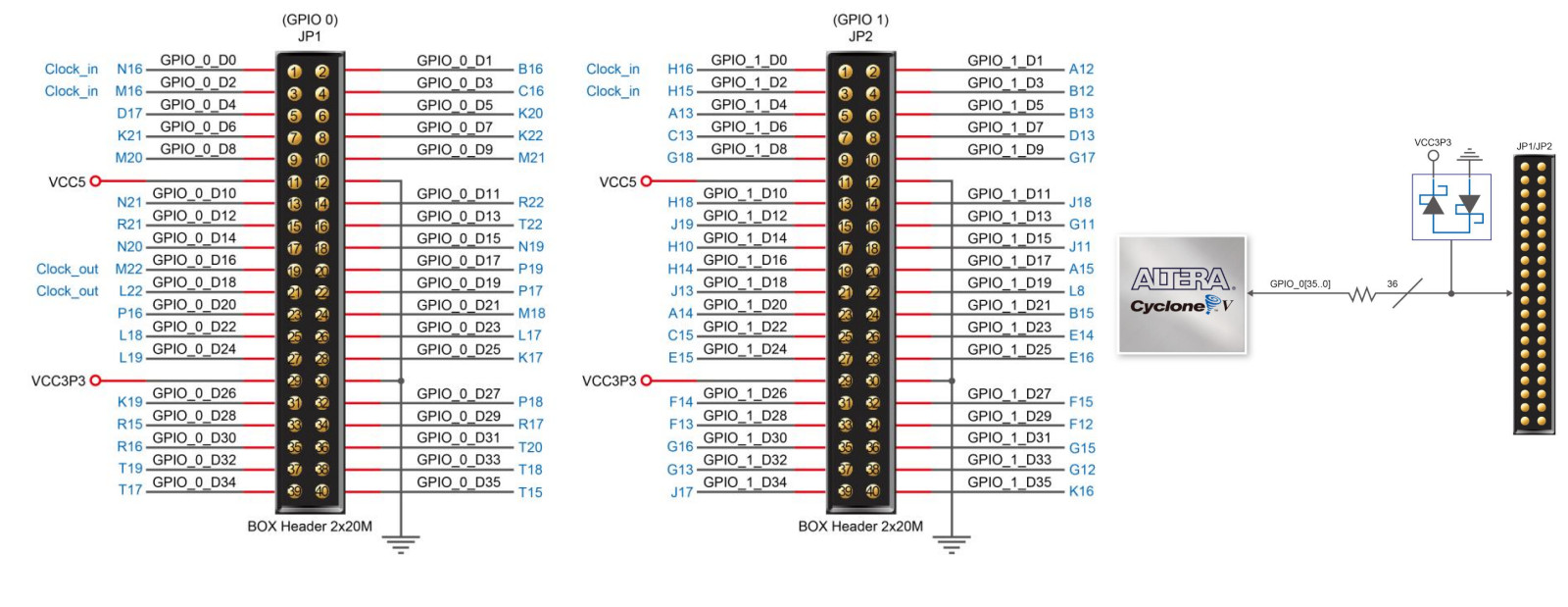

Figure: GPIO Pins — 2x20 Pin Headers (Source: Terasic)

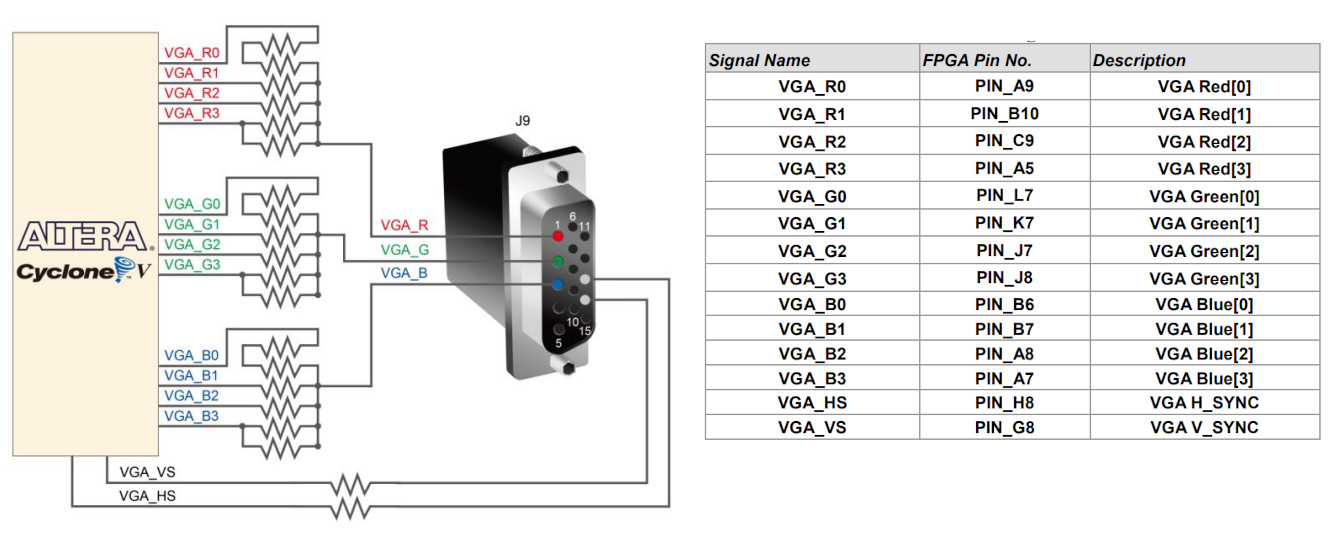

Figure: VGA Pins (Source: Terasic)

Figure: PS/2 Pins (Source: Terasic)

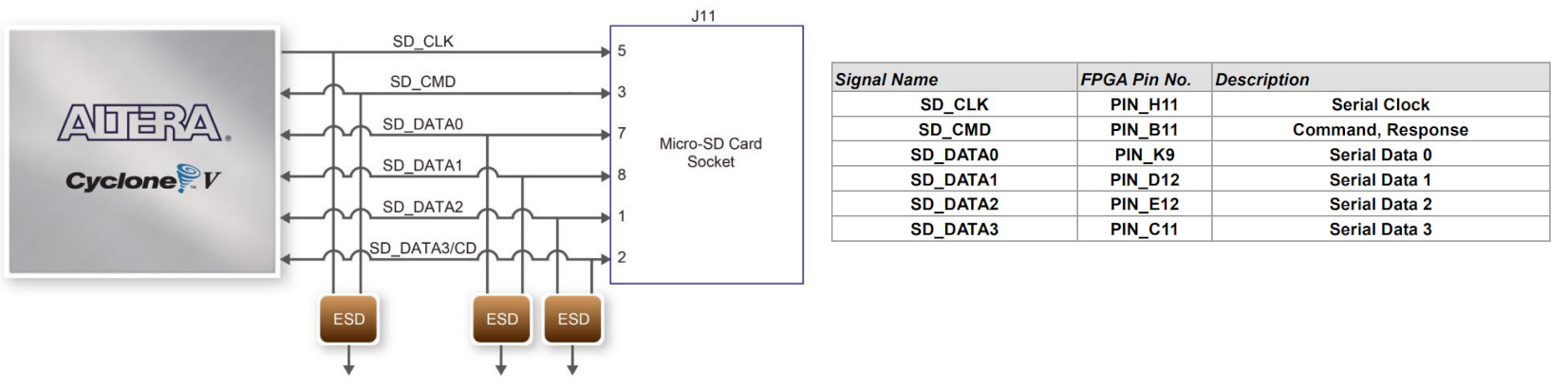

Figure: SDCard Pins (Source: Terasic)

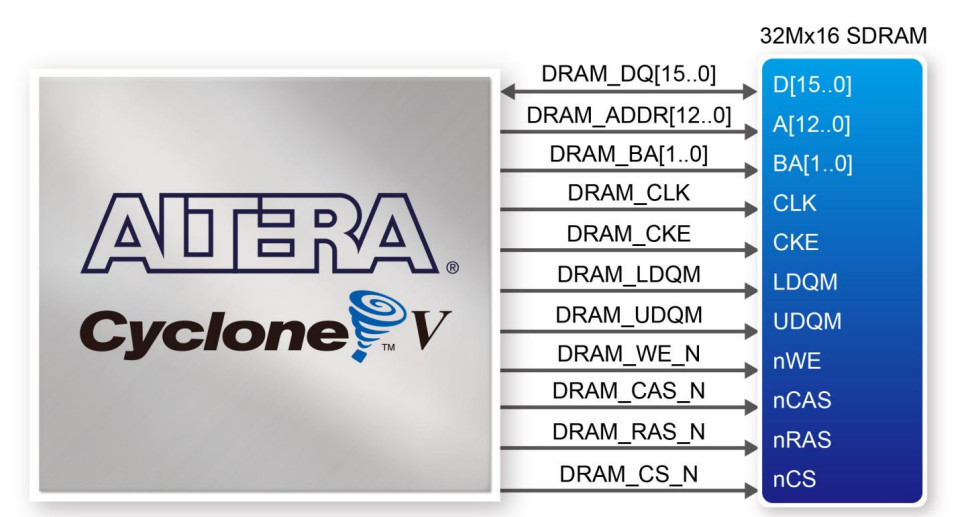

Figure: SDRAM Pins (Source: Terasic)

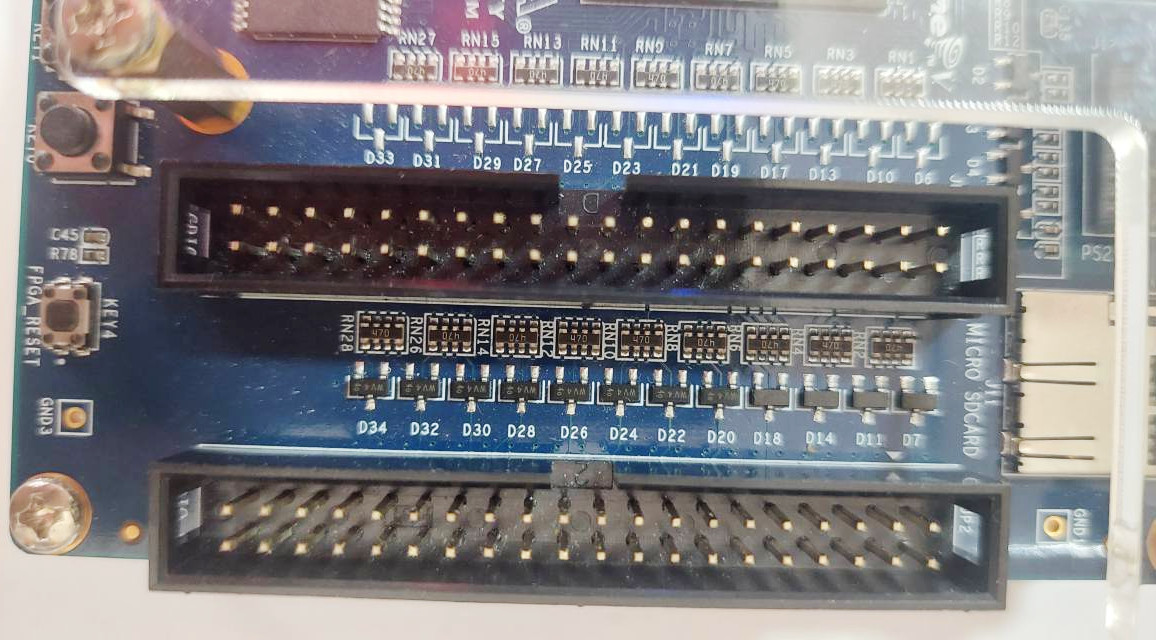

Figure: GPIO Connectors

FPGA Board Comparison#

The DE0-CV board uses a Cyclone V FPGA device (5CEBA4F23C7N), whereas the DE10-Lite board uses a MAX 10 FPGA device (10M50DAF484C7G). The FPGA devices on these boards offer nearly the same logic capacity (approximately 50K logic elements).
The MAX 10 FPGA includes on-chip flash configuration memory for storing the FPGA bitstream, while the Cyclone V FPGA requires an external serial configuration device.
The MAX 10 FPGA also includes an on-chip ADC IP core, whereas the Cyclone V FPGA does not.
The DE10-Lite has an Arduino-compatible female-pin connector, while the DE0-CV does not.
The DE10-Lite provides an accelerometer (ADXL345), while the DE0-CV does not have an onboard accelerometer.
The GPIO pins of the DE0-CV include protection (clamping) diodes, whereas the MAX 10 device on the DE10-Lite does not.

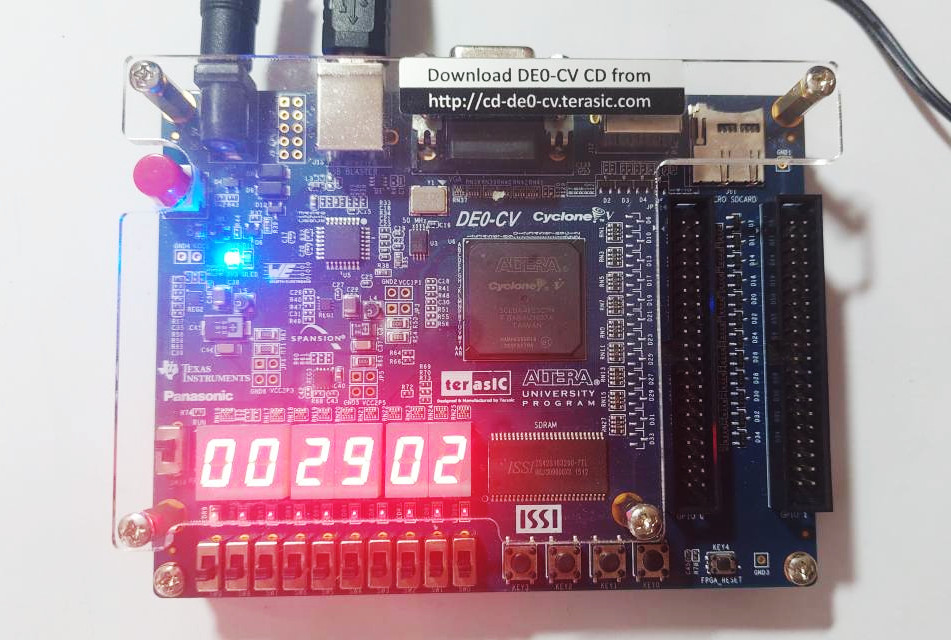

VHDL Demo Code#

The following VHDL code is provided as an example for implementation and testing on the DE0-CV board. The design implements a counter that increments every 100 ms. The current counter value is displayed on the 6-digit, 7-segment display (HEX5..HEX0). In addition, the 10-bit slide switches (SW[9..0]) are used as inputs, and their values are displayed on the 10 LEDs (LEDR[9..0]) when one of the four push buttons (KEY[3..0]) is pressed.

LIBRARY IEEE;
USE IEEE.STD_LOGIC_1164.ALL;
USE IEEE.NUMERIC_STD.ALL;

ENTITY de0cv_demo_1 IS
    PORT (
        CLK     : IN STD_LOGIC; -- 50 MHz clock
        RESET_N : IN STD_LOGIC; -- active-low asynchronous reset
        HEX5    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        HEX4    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        HEX3    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        HEX2    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        HEX1    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        HEX0    : OUT STD_LOGIC_VECTOR(6 DOWNTO 0);
        KEY     : IN  STD_LOGIC_VECTOR(3 DOWNTO 0);
        SW      : IN  STD_LOGIC_VECTOR(9 DOWNTO 0);
        LEDR    : OUT STD_LOGIC_VECTOR(9 DOWNTO 0)
    );
END ENTITY;

ARCHITECTURE rtl OF de0cv_demo_1 IS

    --------------------------------------------------------------------
    -- Function: integer (0–9) to 7-segment decode
    --------------------------------------------------------------------
    FUNCTION DEC7SEG(d : INTEGER RANGE 0 TO 15) RETURN STD_LOGIC_VECTOR IS
    BEGIN
        CASE d IS
            WHEN 0 => RETURN "1000000"; -- 0
            WHEN 1 => RETURN "1111001"; -- 1
            WHEN 2 => RETURN "0100100"; -- 2
            WHEN 3 => RETURN "0110000"; -- 3
            WHEN 4 => RETURN "0011001"; -- 4
            WHEN 5 => RETURN "0010010"; -- 5
            WHEN 6 => RETURN "0000010"; -- 6
            WHEN 7 => RETURN "1111000"; -- 7
            WHEN 8 => RETURN "0000000"; -- 8
            WHEN 9 => RETURN "0010000"; -- 9
            WHEN OTHERS => RETURN "1111111"; -- off
        END CASE;
    END FUNCTION;

    --------------------------------------------------------------------
    -- Clock parameters
    --------------------------------------------------------------------
    CONSTANT CLK_FREQ : INTEGER := 50_000_000;
    CONSTANT TICK_MS  : INTEGER := 100;
    CONSTANT TICK_COUNT : INTEGER := (CLK_FREQ / 1000) * TICK_MS;
    SIGNAL tick_counter : integer range 0 to TICK_COUNT := 0;

    CONSTANT CNT_MAX : INTEGER := 999999;
    SIGNAL counter   : INTEGER RANGE 0 TO CNT_MAX := 0;

    --------------------------------------------------------------------
    -- BCD digit storage
    --------------------------------------------------------------------
    TYPE bcd_array_t IS ARRAY(5 DOWNTO 0) OF INTEGER RANGE 0 TO 9;
    SIGNAL bcd_digits : bcd_array_t := (OTHERS => 0);

    --------------------------------------------------------------------
    -- FSM for sequential division/mod extraction
    --------------------------------------------------------------------
    TYPE state_t IS (IDLE, DIVIDE, DONE);
    SIGNAL state : state_t := IDLE;
    SIGNAL div_result  : INTEGER RANGE 0 TO CNT_MAX := 0;
    SIGNAL digit_index : INTEGER RANGE 0 TO 5 := 0;

    SIGNAL tick_pulse : STD_LOGIC := '0';
    SIGNAL bcd_update : STD_LOGIC := '0';

BEGIN
    --------------------------------------------------------------------
    -- Tick generator: produces pulse every 100 ms
    --------------------------------------------------------------------
    PROCESS (CLK, RESET_N)
    BEGIN
        IF RESET_N = '0' THEN
            tick_counter <= 0;
        ELSIF rising_edge(CLK) THEN
            IF tick_counter = TICK_COUNT THEN
                tick_counter <= 0;
            ELSE
                tick_counter <= tick_counter + 1;
            END IF;
        END IF;
    END PROCESS;

    tick_pulse <= '1' WHEN tick_counter = TICK_COUNT  ELSE '0';

    --------------------------------------------------------------------
    -- Binary counter
    --------------------------------------------------------------------
    PROCESS (CLK, RESET_N)
    BEGIN
        IF RESET_N = '0' THEN
            counter <= 0;
            bcd_update <= '0';
        ELSIF rising_edge(CLK) THEN
            bcd_update <= '0';
            IF tick_pulse = '1' THEN -- one-cycle tick pulse is high
                IF counter = CNT_MAX THEN
                    counter <= 0;
                ELSE
                    counter <= counter + 1;
                END IF;
                bcd_update <= '1'; -- one-cycle pulse
            END IF;
        END IF;
    END PROCESS;

    --------------------------------------------------------------------
    -- Sequential mod/div BCD conversion
    --------------------------------------------------------------------
    PROCESS (CLK, RESET_N)
    BEGIN
        IF RESET_N = '0' THEN
            bcd_digits <= (OTHERS => 0);
            div_result <= 0;
            digit_index <= 0;
            state <= IDLE;
        ELSIF rising_edge(CLK) THEN
            CASE state IS
                WHEN IDLE =>
                    IF bcd_update = '1' THEN
                        state <= DIVIDE;
                        div_result  <= counter;
                        digit_index <= 0;
                    END IF;

                WHEN DIVIDE =>
                    bcd_digits(digit_index) <= div_result MOD 10;
                    div_result <= div_result / 10;
                    IF digit_index = 5 THEN
                        state <= DONE;
                    ELSE
                        digit_index <= digit_index + 1;
                    END IF;

                WHEN DONE =>
                    state <= IDLE;
            END CASE;
        END IF;
    END PROCESS;

    --------------------------------------------------------------------
    -- Drive 7-segment outputs (active-low)
    --------------------------------------------------------------------
    HEX0 <= DEC7SEG(bcd_digits(0));
    HEX1 <= DEC7SEG(bcd_digits(1));
    HEX2 <= DEC7SEG(bcd_digits(2));
    HEX3 <= DEC7SEG(bcd_digits(3));
    HEX4 <= DEC7SEG(bcd_digits(4));
    HEX5 <= DEC7SEG(bcd_digits(5));

    LEDR <= SW WHEN not(KEY(0) and KEY(1) and KEY(2) and KEY(3)) = '1'
            ELSE (others => '0');

END ARCHITECTURE rtl;

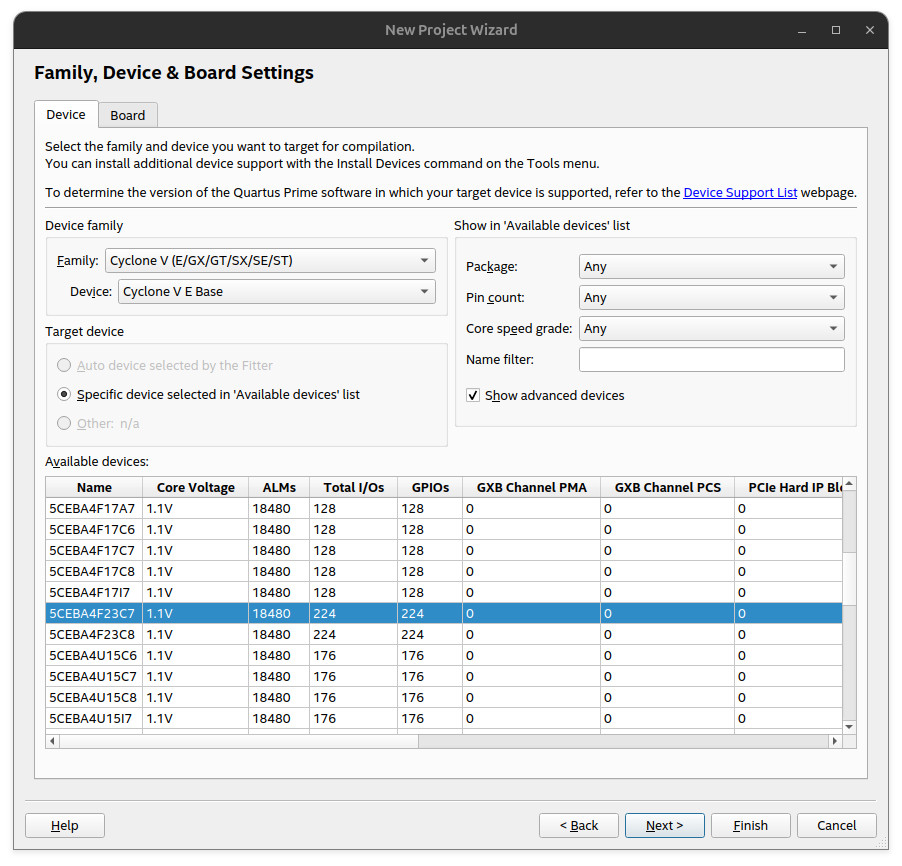

Figure: Device Selection (Cyclone V Base E - 5CEBA4F23C7)

A Tcl script is provided to configure the pin assignments for the design example on the DE0-CV board.

#set_global_assignment -name FAMILY "Cyclone V"
#set_global_assignment -name DEVICE 5CEBA4F23C7

# 50MHz system clock and async. active-low reset (push button)
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to CLK
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to RESET_N
set_location_assignment PIN_M9  -to CLK
set_location_assignment PIN_P22 -to RESET_N

######################################################################
# Push buttons

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to KEY[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to KEY[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to KEY[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to KEY[3]

set_location_assignment PIN_U7 -to KEY[0]
set_location_assignment PIN_W9 -to KEY[1]
set_location_assignment PIN_M7 -to KEY[2]
set_location_assignment PIN_M6 -to KEY[3]

######################################################################
# Red LEDs

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[8]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to  LEDR[9]

set_location_assignment PIN_AA2 -to LEDR[0]
set_location_assignment PIN_AA1 -to LEDR[1]
set_location_assignment PIN_W2 -to LEDR[2]
set_location_assignment PIN_Y3 -to LEDR[3]
set_location_assignment PIN_N2 -to LEDR[4]
set_location_assignment PIN_N1 -to LEDR[5]
set_location_assignment PIN_U2 -to LEDR[6]
set_location_assignment PIN_U1 -to LEDR[7]
set_location_assignment PIN_L2 -to LEDR[8]
set_location_assignment PIN_L1 -to LEDR[9]

######################################################################

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[6]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[7]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[8]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to SW[9]

set_location_assignment PIN_U13 -to SW[0]
set_location_assignment PIN_V13 -to SW[1]
set_location_assignment PIN_T13 -to SW[2]
set_location_assignment PIN_T12 -to SW[3]
set_location_assignment PIN_AA15 -to SW[4]
set_location_assignment PIN_AB15 -to SW[5]
set_location_assignment PIN_AA14 -to SW[6]
set_location_assignment PIN_AA13 -to SW[7]
set_location_assignment PIN_AB13 -to SW[8]
set_location_assignment PIN_AB12 -to SW[9]

#####################################################################
# Six-Digit 7-Segment Display

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX0[6]

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX1[6]

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX2[6]

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX3[6]

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX4[6]

set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[2]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[3]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[4]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[5]
set_instance_assignment -name IO_STANDARD "3.3-V LVTTL" -to HEX5[6]

set_location_assignment PIN_U21 -to HEX0[0]
set_location_assignment PIN_V21 -to HEX0[1]
set_location_assignment PIN_W22 -to HEX0[2]
set_location_assignment PIN_W21 -to HEX0[3]
set_location_assignment PIN_Y22 -to HEX0[4]
set_location_assignment PIN_Y21 -to HEX0[5]
set_location_assignment PIN_AA22 -to HEX0[6]

set_location_assignment PIN_AA20 -to HEX1[0]
set_location_assignment PIN_AB20 -to HEX1[1]
set_location_assignment PIN_AA19 -to HEX1[2]
set_location_assignment PIN_AA18 -to HEX1[3]
set_location_assignment PIN_AB18 -to HEX1[4]
set_location_assignment PIN_AA17 -to HEX1[5]
set_location_assignment PIN_U22  -to HEX1[6]

set_location_assignment PIN_Y19  -to HEX2[0]
set_location_assignment PIN_AB17 -to HEX2[1]
set_location_assignment PIN_AA10 -to HEX2[2]
set_location_assignment PIN_Y14  -to HEX2[3]
set_location_assignment PIN_V14  -to HEX2[4]
set_location_assignment PIN_AB22 -to HEX2[5]
set_location_assignment PIN_AB21 -to HEX2[6]

set_location_assignment PIN_Y16  -to HEX3[0]
set_location_assignment PIN_W16  -to HEX3[1]
set_location_assignment PIN_Y17  -to HEX3[2]
set_location_assignment PIN_V16  -to HEX3[3]
set_location_assignment PIN_U17  -to HEX3[4]
set_location_assignment PIN_V18  -to HEX3[5]
set_location_assignment PIN_V19  -to HEX3[6]

set_location_assignment PIN_U20  -to HEX4[0]
set_location_assignment PIN_Y20  -to HEX4[1]
set_location_assignment PIN_V20  -to HEX4[2]
set_location_assignment PIN_U16  -to HEX4[3]
set_location_assignment PIN_U15  -to HEX4[4]
set_location_assignment PIN_Y15  -to HEX4[5]
set_location_assignment PIN_P9   -to HEX4[6]

set_location_assignment PIN_N9   -to HEX5[0]
set_location_assignment PIN_M8   -to HEX5[1]
set_location_assignment PIN_T14  -to HEX5[2]
set_location_assignment PIN_P14  -to HEX5[3]
set_location_assignment PIN_C1   -to HEX5[4]
set_location_assignment PIN_C2   -to HEX5[5]
set_location_assignment PIN_W19  -to HEX5[6]
set_location_assignment PIN_W19  -to HEX5[6]

Figure: 6-digit BCD Counter Demo Using the DE0-CV Board

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Created: 2025-09-29 | Last Updated: 2025-09-29

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search
